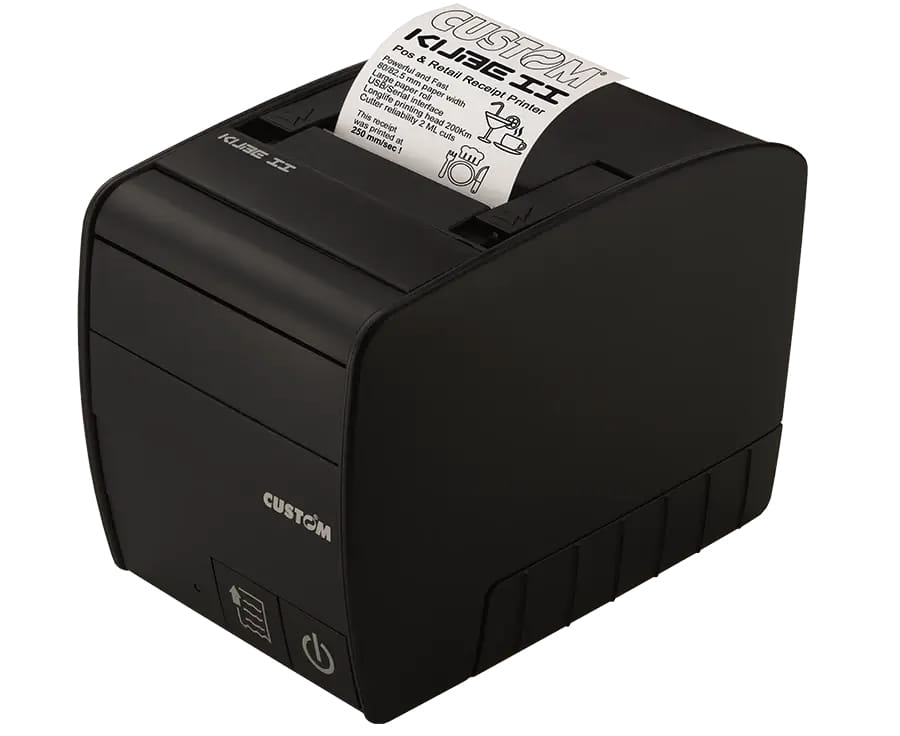

CUSTOM KUBE II, Thermal, POS printer, 203 x 203 DPI, 8 dots/line, 250 mm/sec, PC437, PC850, PC858, PC860, PC863, PC865
Ideal for the retail and hospitality sectors
KUBE II is the ideal thermal POS printer for the retail and hospitality sectors. Thanks to its compact, appealing and robust design, and the possibility to install it both vertically and horizontally, it is the ideal solution for Points of Sale. KUBE II comes powerful and extremely fast: it prints on 80/82.5mm tickets providing extraordinary printing quality and the possibility to move and position the characters and graphics in any direction. The large paper roll (90mm diameter) assures High printing capacity. KUBE II features unique performance levels, sturdiness and reliability: it is equipped with long-life and high quality printing head (200 km of printed paper), and with the new cutter for automatic receipt cutting, to provide the greatest efficiency for over 2 million cuts. KUBE II prints high resolution graphic coupons and logos. As accessories, we have available the coloured sides (red, silver and beige). KUBE II comes equipped with USB, Serial RS232 interface, with drawer control drivers.
SOFTWARE
PrinterSet to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.semplice e veloce.
VIRTUAL COM Software Tool to create a virtual serial port on Windows PC (XP,Vista,7,8) capable of connecting Custom devices, physically linked via USB or ETHERNET, in such a way as to be compatible with software applications designed for connection in serial mode
KUBE II is the ideal thermal POS printer for the retail and hospitality sectors. Thanks to its compact, appealing and robust design, and the possibility to install it both vertically and horizontally, it is the ideal solution for Points of Sale. KUBE II comes powerful and extremely fast: it prints on 80/82.5mm tickets providing extraordinary printing quality and the possibility to move and position the characters and graphics in any direction. The large paper roll (90mm diameter) assures High printing capacity. KUBE II features unique performance levels, sturdiness and reliability: it is equipped with long-life and high quality printing head (200 km of printed paper), and with the new cutter for automatic receipt cutting, to provide the greatest efficiency for over 2 million cuts. KUBE II prints high resolution graphic coupons and logos. As accessories, we have available the coloured sides (red, silver and beige). KUBE II comes equipped with USB, Serial RS232 interface, with drawer control drivers.
SOFTWARE
PrinterSet to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.semplice e veloce.
VIRTUAL COM Software Tool to create a virtual serial port on Windows PC (XP,Vista,7,8) capable of connecting Custom devices, physically linked via USB or ETHERNET, in such a way as to be compatible with software applications designed for connection in serial mode
| Printing | |
| Maximum resolution Maximum printing resolution. | 203 x 203 DPI |
| Print columns | 8 dots/line |
| Print speed The maximum speed at which a printer can print. | 250 mm/sec |
| Character sets | PC437, PC850, PC858, PC860, PC863, PC865 |
| Print technology Indicates the method used to print by this product. | Thermal |
| Type Characteristics of the device. | POS printer |
| Paper handling | |
| Printing media thickness Physical thickness of media (paper or film) expressed in mils and microns. | 63 µm |
| Maximum roll diameter The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll. | 9 cm |
| Supported paper width | 82.5 mm |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| Serial interface |
|
| Serial interface type | RS-232 |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Features | |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, PDF417, UPC-A, UPC-E |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 2 MB |
| Flash memory | 0.512 MB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 360000 h |
| Cutter |
|
| Safety List of regulatory safety standards for all countries in which this product has been certified. | EN60950 2001 |
| Certification | CE, RoHS Compliant |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power source type What the power source is. | DC |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 140 mm |
| Depth The distance from the front to the back of something. | 209 mm |
| Height The measurement of the product from head to foot or from base to top. | 152 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.3 kg |
| SKU | 730037 |
| MPN | 911BJ050100333 |
| Brand | Custom |
