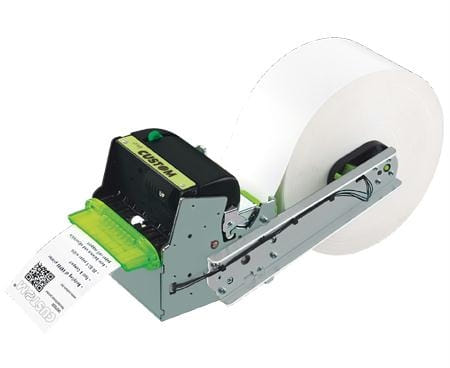

CUSTOM VKP80II SX, Thermal, POS printer, 200 x 200 DPI, 220 mm/sec, PC437, PC850, PC858, PC860, PC863, PC865, 30 cm
80 MM TICKET / RECEIPT PRINTER
High print quality (200 DPI);
Paper width: from 60 to 82.5 mm (adjustable paper infeed for different paper widths);
Printing > 220 mm/sec;
Automatic ticket ejecting and retracting (speed: > 1000 mm/s);
High power motor feeder for large paper rolls (up to 300 mm );
RS232 USB / RS232 USB Ethernet interfaces;
1D and 2D barcode printing: (QRCODE, PDF417; DATAMATRIX for ETH version;
International fonts on board: any language available;
4MB internal flash memory for logos and fonts;
Highly reliable cutter: over 1,500,000 cuts;
Sensors: paper end, black mark, ticket presence, printing unit opening and near paper end on the roll holder.
EXCLUSIVE FEATURES
Anti Jamming System;
Automatic Status Back;
Adjustable paper infeed for different paper widths;
Self balancing paper roll holder;
Illuminated paper bezel;
Multi position paper roll;
The standard roll holder handles paper rolls with a diameter of up to 180mm, but the powerful printer motor is capable of handling paper rolls up to 300 mm in diameter;
Automatic ticket ejection;
Automatic ticket retracting;
Operating temperatures 20 70 DegC 10%%.
High print quality (200 DPI);
Paper width: from 60 to 82.5 mm (adjustable paper infeed for different paper widths);
Printing > 220 mm/sec;
Automatic ticket ejecting and retracting (speed: > 1000 mm/s);
High power motor feeder for large paper rolls (up to 300 mm );
RS232 USB / RS232 USB Ethernet interfaces;
1D and 2D barcode printing: (QRCODE, PDF417; DATAMATRIX for ETH version;
International fonts on board: any language available;
4MB internal flash memory for logos and fonts;
Highly reliable cutter: over 1,500,000 cuts;
Sensors: paper end, black mark, ticket presence, printing unit opening and near paper end on the roll holder.
EXCLUSIVE FEATURES
Anti Jamming System;
Automatic Status Back;
Adjustable paper infeed for different paper widths;
Self balancing paper roll holder;
Illuminated paper bezel;
Multi position paper roll;
The standard roll holder handles paper rolls with a diameter of up to 180mm, but the powerful printer motor is capable of handling paper rolls up to 300 mm in diameter;
Automatic ticket ejection;
Automatic ticket retracting;
Operating temperatures 20 70 DegC 10%%.
| Printing | |
| Maximum resolution Maximum printing resolution. | 200 x 200 DPI |
| Print speed The maximum speed at which a printer can print. | 220 mm/sec |
| Character sets | PC437, PC850, PC858, PC860, PC863, PC865 |
| Print technology Indicates the method used to print by this product. | Thermal |
| Type Characteristics of the device. | POS printer |
| Paper handling | |
| Maximum roll diameter The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll. | 30 cm |
| Supported paper width | 60 - 82.5 mm |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Serial interface |
|
| Serial interface type | RS-232 |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RS-232, USB 2.0 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Features | |
| Built-in barcodes | 1D, 2D, Data Matrix, PDF417, QR Code |
| Flash memory | 4 MB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 590000 h |
| Autocutter durability | 1.5 million cuts |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Stainless steel |
| Power | |
| Power source type What the power source is. | DC |
| Power consumption | 2200 mA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 70 °C |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows XP (32/64-bit) Windows Vista (32/64-bit) Windows 7 (32/64-bit) Linux OPOS JavaPOS WOSA XFS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 123.5 mm |
| Depth The distance from the front to the back of something. | 149.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 121.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.6 kg |
| Packaging data | |
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Full Status Monitor CePrinterSet |
| Packaging content | |
| Drivers included |
|
| Technical details | |
| Voltage | 24 V |
| Other features | |
| Buffer size The buffer is a temporary memory area in which data is stored while it is being processed or transferred, especially one used while streaming video or downloading audio. The buffer size is usually measured in MB (megabytes) or KB (kilobytes). | 16 KB |
| Mean cycles between failures (MCBF) | 1500000 |
| SKU | 724868 |
| MPN | 915DW011000300 |
| Brand | Custom |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
