1) Cable Construction: 6-Core OM3 Optical Fiber + 9-Core Copper Wire
2) Detailed Structure: (FIBER4C+MID)1C + (FIBER4C+MID)1C + (1/0.525B2C+D+AL+HM)1C + 19/0.08T1P + 19/0.08T2C + 90/0.08T*2C + F+D+ADB

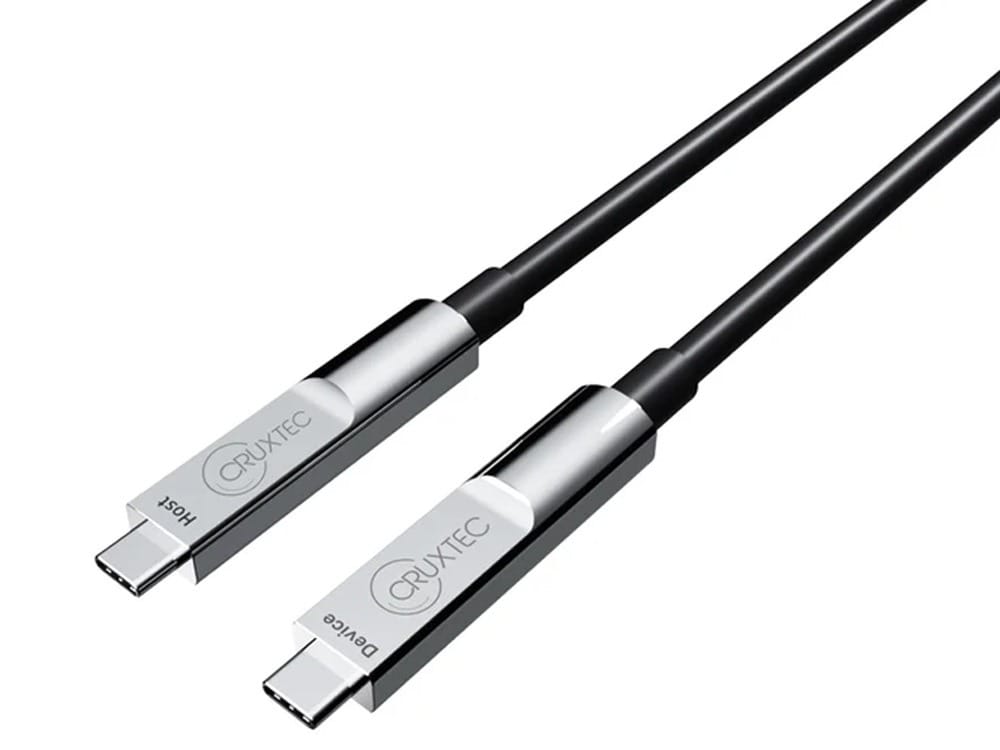

3) Connector Type: Integrated stretch-formed Type-C connector
4) Connector Housing: Zinc Alloy
5) Cable Jacket: Black TPE
6) Outer Diameter: 6.5 mm
7) Chipset: C1BA V1.0
8) Power Consumption: 250 mW
9) USB Standard: USB 3.2 Gen 2
10) Data Transfer Rate: Up to 10 Gbps
11) Power Delivery: PD 60W (20V / 3A) Fast Charging
12) Video Transmission: Supports 4K@60Hz, up to 8K@60Hz and 4K@120Hz
13) Available Lengths: 10 m / 15 m
14) Compatible Devices:
Compatible with computers, laptops, workstations, external drives, PTZ/CCTV/web cameras, keyboards, mice, touchscreens, tablets (iPad), Mac devices, and other high-speed Type-C-enabled laptops.
15)User Tips:
This optical cable is uni-directional for video and audio transmission.
Please ensure the HOST end is connected to the source device (e.g., laptop or computer), and the DEVICE end is connected to the display device (e.g., monitor or TV).
2) Detailed Structure: (FIBER4C+MID)1C + (FIBER4C+MID)1C + (1/0.525B2C+D+AL+HM)1C + 19/0.08T1P + 19/0.08T2C + 90/0.08T*2C + F+D+ADB
3) Connector Type: Integrated stretch-formed Type-C connector
4) Connector Housing: Zinc Alloy
5) Cable Jacket: Black TPE
6) Outer Diameter: 6.5 mm
7) Chipset: C1BA V1.0
8) Power Consumption: 250 mW
9) USB Standard: USB 3.2 Gen 2
10) Data Transfer Rate: Up to 10 Gbps
11) Power Delivery: PD 60W (20V / 3A) Fast Charging
12) Video Transmission: Supports 4K@60Hz, up to 8K@60Hz and 4K@120Hz
13) Available Lengths: 10 m / 15 m
14) Compatible Devices:
Compatible with computers, laptops, workstations, external drives, PTZ/CCTV/web cameras, keyboards, mice, touchscreens, tablets (iPad), Mac devices, and other high-speed Type-C-enabled laptops.
15)User Tips:
This optical cable is uni-directional for video and audio transmission.
Please ensure the HOST end is connected to the source device (e.g., laptop or computer), and the DEVICE end is connected to the display device (e.g., monitor or TV).
| SKU | 830166 |
| MPN | CCF10-10-BK |
| Brand | Cruxtec |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | Cruxtec |
