Crestron UC Engine TeamSD Assy Mount Bracket
Item No:
751037
MPN:
UC-BRKT-100-SD-ASSY
$30,000.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Crestron UC-BRKT-100-SD-ASSY

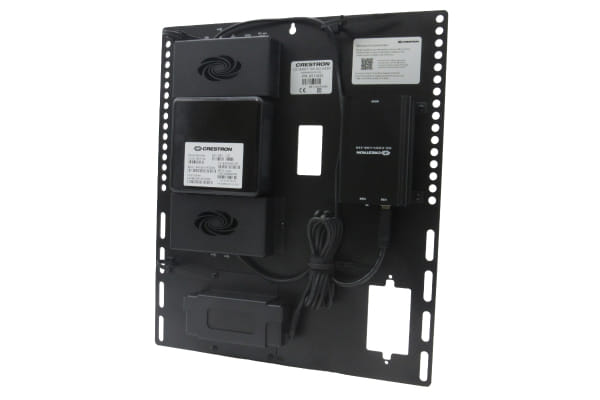

The UC Engine Assembly (UC-BRKT-100-SD-ASSY) streamlines the installation of a Crestron Flex UC system by incorporating the UC-ENGINE-SD, HD-CONV-USB-200, and UC-CONN-HD together on one convenient mounting bracket.
The complete assembly can be mounted on the wall, or it can be attached to the rear of the display device. Attachment to the display is accomplished using two of the four bolts that also affix the display to a VESA compliant display mount. The assembly bracket includes mounting holes on its left and right side edges, spaced at 100, 200, and 300 mm vertically, to allow for attachment to either side of a mounting plate on the rear of a display.
To manage wiring and conceal connections for a clean, secure installation, a 1-gang sized cutout at the lower right-hand corner allows for mounting over a flush wall-mounted electrical box. The box may be used for an AC outlet or a wall plate containing AV and data jacks.
The complete assembly can be mounted on the wall, or it can be attached to the rear of the display device. Attachment to the display is accomplished using two of the four bolts that also affix the display to a VESA compliant display mount. The assembly bracket includes mounting holes on its left and right side edges, spaced at 100, 200, and 300 mm vertically, to allow for attachment to either side of a mounting plate on the rear of a display.
To manage wiring and conceal connections for a clean, secure installation, a 1-gang sized cutout at the lower right-hand corner allows for mounting over a flush wall-mounted electrical box. The box may be used for an AC outlet or a wall plate containing AV and data jacks.
| SKU | 751037 |
| MPN | UC-BRKT-100-SD-ASSY |
| Brand | Crestron |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.crestron.com/ |
