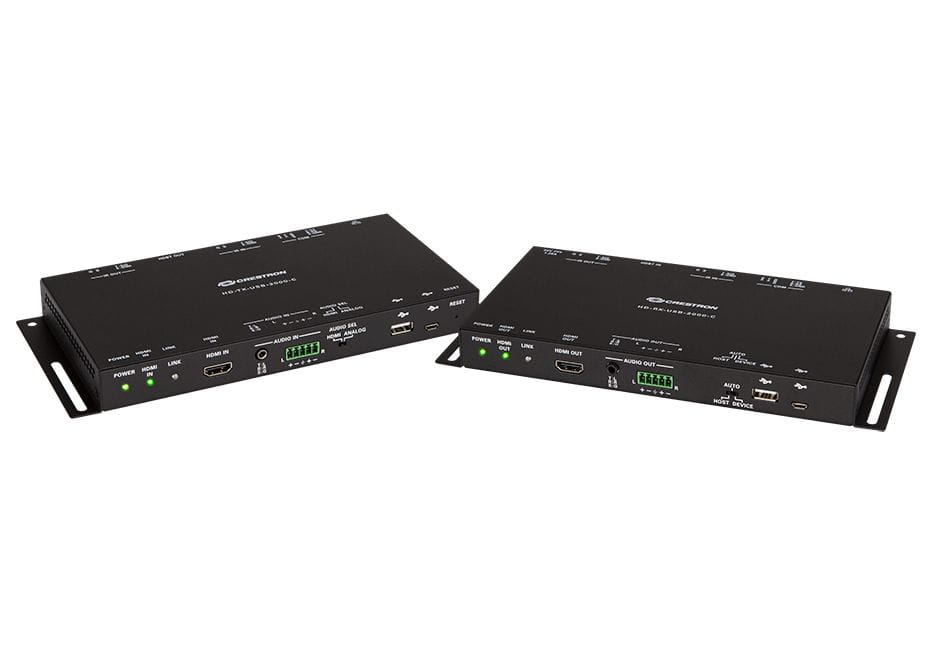

Crestron HD-EXT-USB-2000-C, 4096 x 2160 pixels, AV transmitter & receiver, Wired, Black
A point-to-point signal extender for HDMI, USB 2.0, RS-232, IR, and Ethernet signals.
The HD-EXT-USB-2000-C is a point-to-point signal extender for HDMI, USB 2.0, RS-232, IR, and Ethernet signals. Analog audio input and/or output signals are also supported in combination with HDMI video. The HD-EXT-USB-2000-C is ideal for use with a single HD or UHD display device and USB camera to extend the signal wiring from an AV media source, computer, central equipment cabinet, or Crestron Mercury Tabletop Conference System.
The extender is composed of a compact transmitter and receiver pair, which may be installed up to 330 feet (100 meters) apart (depending on the video resolution and wire type). Video, audio, control, and LAN signals are all transported through a single CAT type cable (not included) using HDBaseT technology.
The HD-EXT-USB-2000-C is a point-to-point signal extender for HDMI, USB 2.0, RS-232, IR, and Ethernet signals. Analog audio input and/or output signals are also supported in combination with HDMI video. The HD-EXT-USB-2000-C is ideal for use with a single HD or UHD display device and USB camera to extend the signal wiring from an AV media source, computer, central equipment cabinet, or Crestron Mercury Tabletop Conference System.
The extender is composed of a compact transmitter and receiver pair, which may be installed up to 330 feet (100 meters) apart (depending on the video resolution and wire type). Video, audio, control, and LAN signals are all transported through a single CAT type cable (not included) using HDBaseT technology.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| RJ-45 input ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| USB ports quantity | 1 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| USB connector type The type of USB connector/port that this product has. | Micro-USB B |
| 3.5 mm (1/8-inch) in |
|
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 1.25 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18.7 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 244 x 25 x 114 mm |
| Receiver weight | 776 g |
| Transmitter dimensions (WxDxH) | 244 x 25 x 114 mm |
| Transmitter weight | 776 g |
| SKU | 779747 |
| MPN | HD-EXT-USB-2000-C |
| Brand | Crestron |
| Product Condition | Brand New/Unused |
| Product Use | General |
