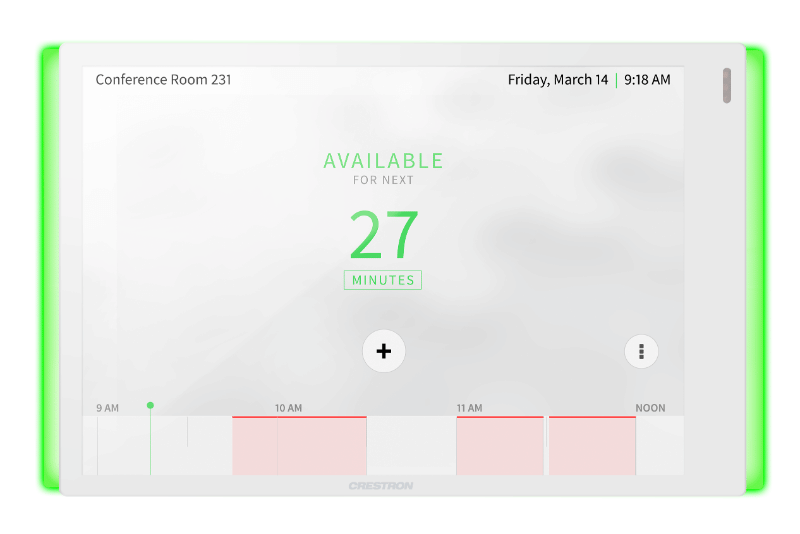

Resolution: 1280 x 800 pixels - Brightness: 350 nits (cd/m²) - Contrast: 850:1 - Crestron Bluetooth beacon
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Display | |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 17.8 cm (7") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 800 pixels |
| Touchscreen technology | Projected capacitive system |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 16:10 |
| Colour depth | 24 bit |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 80° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 80° |
| Ports & interfaces | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 173 mm |
| Depth The distance from the front to the back of something. | 51 mm |
| Height The measurement of the product from head to foot or from base to top. | 106 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 400 g |
| SKU | 592207 |
| MPN | TSS-770-W-S-LBKIT |
| Brand | Crestron |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
