Crestron 30 Port POE+ Managed Switch
Item No:
813441
MPN:
CEN-SWPOE-30
$5,170.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

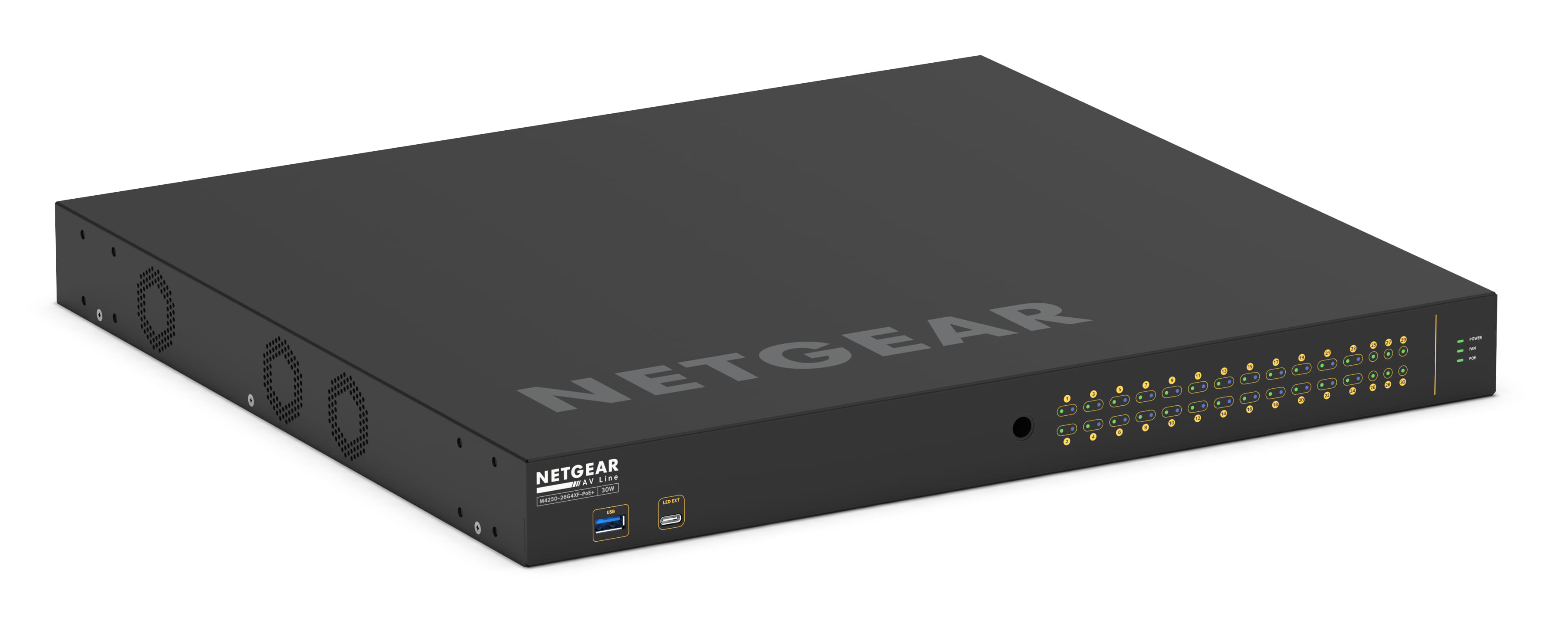

NETGEAR's class-leading AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN-SWPOE-30 is a 30 port managed Ethernet switch that provides PoE+ from 24 of its ports. The four 10 Gigabit Base-X SFP+ ports enable use of transceiver modules to connect to a fiber network.
DM NVX and DM NAX Profiles for Quick Configuration
When configuring a DM NVX or DM NAX system, select the appropriate profile to automatically configure the CEN-SWPOE-30 with the multicast functionality required for AV-over-IP.
Web Browser Interface
Using a streamlined interface, quickly and completely configure individual ports or assign AV profiles for use with DM NVX or DM NAX systems. An advanced command line interface is also available.
Four SFP+ Ports
All SFP+ ports offer 10 Gigabit Base-X connections with support for both multimode and single-mode fiber transceiver modules, such as the SFP-10G-SR.
Power Over Ethernet+
PoE+ is supplied simultaneously across 24 ports, providing a centralized power source for numerous PoE+ powered devices and eliminating the need for cumbersome power supplies and extra wiring. Up to 30 W is provided per port up to a maximum of 480 W.
DM NVX and DM NAX Profiles for Quick Configuration
When configuring a DM NVX or DM NAX system, select the appropriate profile to automatically configure the CEN-SWPOE-30 with the multicast functionality required for AV-over-IP.
Web Browser Interface
Using a streamlined interface, quickly and completely configure individual ports or assign AV profiles for use with DM NVX or DM NAX systems. An advanced command line interface is also available.
Four SFP+ Ports
All SFP+ ports offer 10 Gigabit Base-X connections with support for both multimode and single-mode fiber transceiver modules, such as the SFP-10G-SR.
Power Over Ethernet+
PoE+ is supplied simultaneously across 24 ports, providing a centralized power source for numerous PoE+ powered devices and eliminating the need for cumbersome power supplies and extra wiring. Up to 30 W is provided per port up to a maximum of 480 W.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 26 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 26 |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 4 |
| USB Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 132 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Protocols | |
| Management protocols | Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+ |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | Out-of-band; IT Web GUI (main); HTTPs, CLI, Telnet, SSH; SNMP, MIBs, RSPAN; Radius users, TACACS+, Static, dynamic, voice, MAC; GVRP/GMRP; Double VLAN mode; Private VLANs, Port, subnet, VLAN routing; Multicast static routes; DHCPv4 server; DHCP relay; Stateful DHCPv6 Server, IPv4: RIP; IPv4/IPv6: PIM-SM, PIM-DM, SSM |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6.4 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Total Power over Ethernet (PoE) budget | 614 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 400 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.45 kg |
| SKU | 813441 |
| MPN | CEN-SWPOE-30 |
| Brand | Crestron |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
