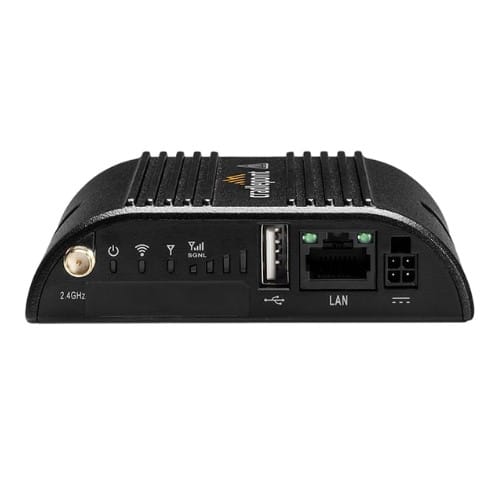

Cradlepoint IBR200 IoT Router, Cat 1, Essentials Plan, 2x SMA cellular connectors, 1x FE Ports, Dual SIM, 3 Year NetCloud
Cradlepoint IBR200 IoT Router, Cat 1, Essentials Plan, 2x SMA cellular connectors, 1x FE Ports, Dual SIM, 3 Year NetCloud
Cradlepoint's NetCloud Service for IoT with the IBR200 Series Router is a purpose built, IoT networking solution with industry leading features. The IBR200 provides connectivity options including Cat 1 LTE modem, Ethernet, Wi Fi, GPIO ports, and passive GPS. It provides a semi ruggedized enterprise class networking platform that can be confidently deployed in diverse implementations such as smart cities, manufacturing, and other IoT scenarios requiring robust connectivity.
When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in band and out of band management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. NetCloud allows customers to build and manage wireless WANs with complete lifecycle management, zero touch deployment, robust security, and traffic management for optimal application performance and reliability.
Modem:
Embedded 10M modem
Ethernet:
1 x FE RJ45
Expansion/ Console:
Power with 2 x GPIO (one input, one output)
Wi Fi:
Single radio, single band (2.4 GHz)
Safety:
UL/cUL, CB Scheme, EN 60950 1, EN 62368 1
Materials:
WEEE, RoHS, RoHS 2, California Prop 65
Stateful Firewall Throughput:
60 Mbps
IPsec VPN Throughput:
10 Mbps
Concurrent VPN Tunnels:
2
Concurrent Sessions (TCP):
16,000
Typical Client Count:
5
Cradlepoint's NetCloud Service for IoT with the IBR200 Series Router is a purpose built, IoT networking solution with industry leading features. The IBR200 provides connectivity options including Cat 1 LTE modem, Ethernet, Wi Fi, GPIO ports, and passive GPS. It provides a semi ruggedized enterprise class networking platform that can be confidently deployed in diverse implementations such as smart cities, manufacturing, and other IoT scenarios requiring robust connectivity.
When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in band and out of band management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. NetCloud allows customers to build and manage wireless WANs with complete lifecycle management, zero touch deployment, robust security, and traffic management for optimal application performance and reliability.
Modem:
Embedded 10M modem
Ethernet:
1 x FE RJ45
Expansion/ Console:
Power with 2 x GPIO (one input, one output)
Wi Fi:
Single radio, single band (2.4 GHz)
Safety:
UL/cUL, CB Scheme, EN 60950 1, EN 62368 1
Materials:
WEEE, RoHS, RoHS 2, California Prop 65
Stateful Firewall Throughput:
60 Mbps
IPsec VPN Throughput:
10 Mbps
Concurrent VPN Tunnels:
2
Concurrent Sessions (TCP):
16,000
Typical Client Count:
5
| WAN connection | |
| Ethernet WAN |
 |
| DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option. |
 |
| SIM card slot Whether the device features a SIM card slot. |
|
| 3G/4G USB modem compatibility |
|
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 60 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Mobile network | |
| Mobile network generation | 4G |
| 4G standard | LTE |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Management features | |
| Quality of Service (QoS) support |
|
| Reset button |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA, WPA2-Enterprise |
| Firewall |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Indication light |
|
| Product type The sub-category of the product. | Portable router |
| Antenna | |
| Antenna design | External |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | 1x1 |
| Power | |
| Power source type What the power source is. | DC |
| Output voltage | 12 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3.6 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 76.5 mm |
| Depth The distance from the front to the back of something. | 94.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 175 g |
| SKU | 746423 |
| MPN | TB3-020010M-PWM |
| Brand | CradlePoint |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://cradlepoint.com/ |
