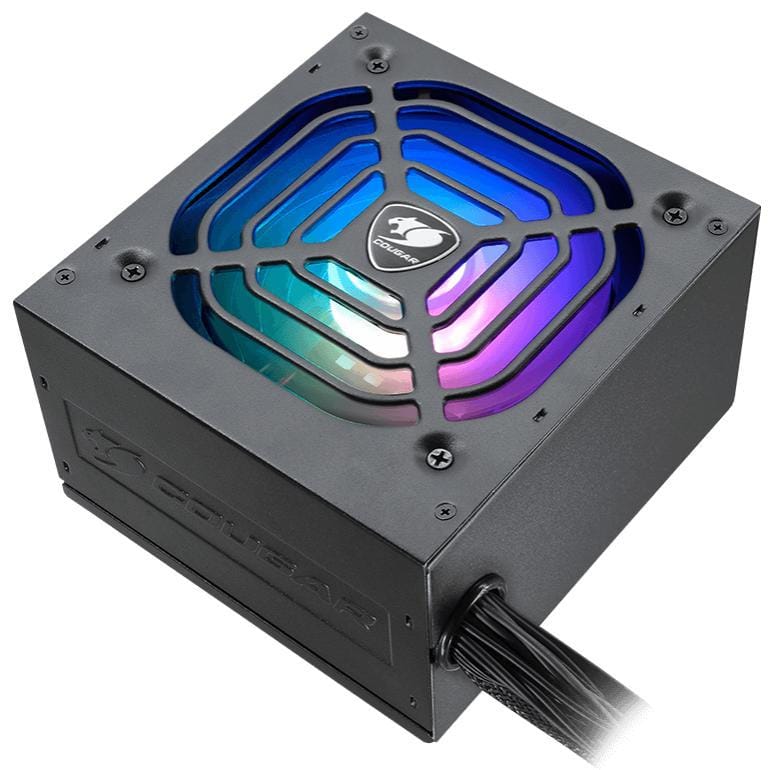

Cougar XTC ARGB 650W Power Supply, 80 PLUS White, 140mm Fan, 1x EPS, 6x SATA, 2x PCI-E, 2x Molex, ARGB LED

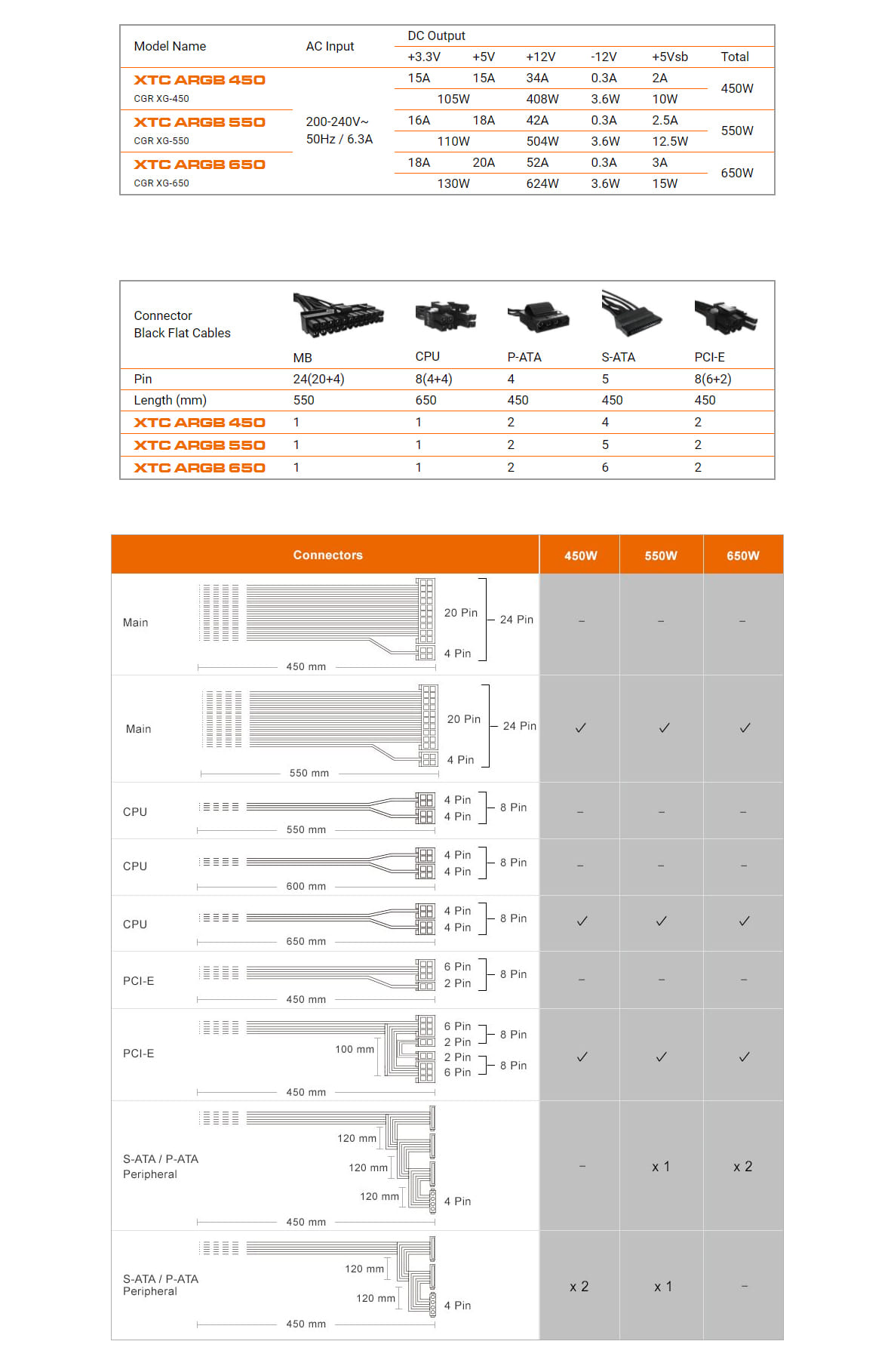

| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 650 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 624 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 52 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 86% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Under current |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 120,450 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 2 |
| Peripheral (Molex) power cable length | 120,450 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 65 cm |
| Performance | |
| 80 PLUS certification | 80 PLUS White |
| Purpose What the product is used for. | PC |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.3 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 158 mm |
| Package depth The distance from the front to the back of the packaging. | 187 mm |
| Package height The distance from the top to the bottom of the packaging. | 165 mm |
| Package weight Weight of the packaged product. | 1.6 kg |
| SKU | 516473 |
| MPN | CGR XG-650 |
| Brand | Cougar |
| Product Condition | Brand New/Unused |
| PSU Form Factor | N/A |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://cougargaming.com/ |
