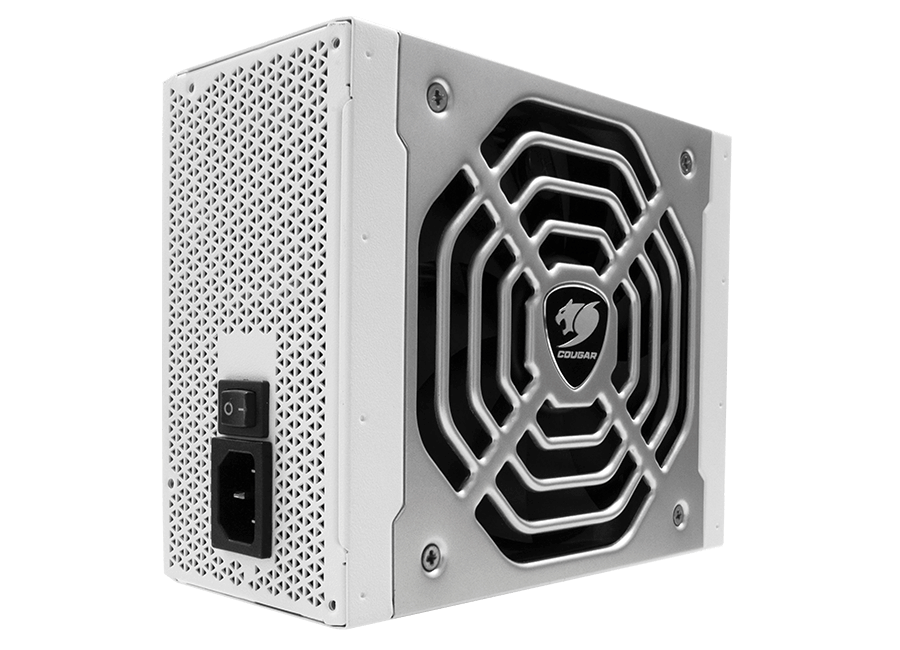

80PLUS Platinum Certified - Durable HDB Fan - Fully Modular Power Supply Unit - Support PCI Express 4.0 Next Generation Graphics Cards with 8(6+2) Pin PCI-E Connector
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1200 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 15 - 7 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| PCI Express power connectors (6+2 pin) | 9 |
| CPU power connector (4+4 pin) |
 |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Silent mode |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Packaging content | |
| Cables included | CPU, PATA, PCIe, SATA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.09 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 331 mm |
| Package depth The distance from the front to the back of the packaging. | 229 mm |
| Package height The distance from the top to the bottom of the packaging. | 107 mm |
| Package weight Weight of the packaged product. | 3.59 kg |
| SKU | 599795 |
| MPN | CGR PR-1200 |
| Brand | Cougar |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Warranty Period | 10 Years Warranty |
