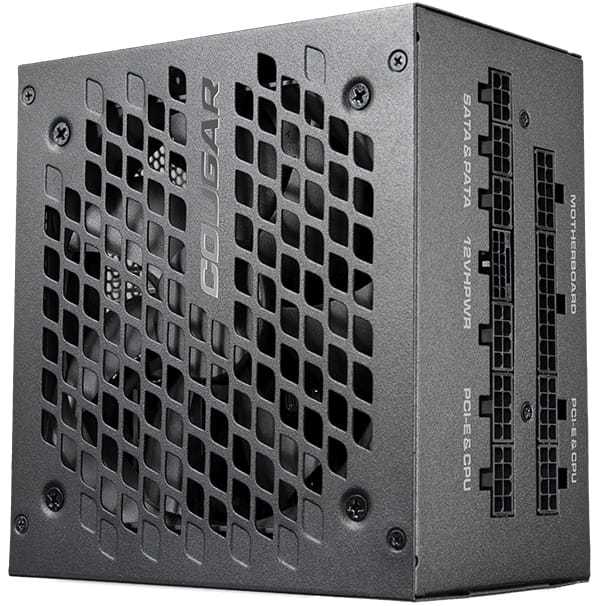

COUGAR Gaming GEX X2 1000, 1000 W, 100 - 240 V, 50/60 Hz, 100 W, 100 W, 100 W
Efficiency
The GEX X2 series features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.
Smart Zero Fan
The fan will be set in motion when the PSU loading is going over 30% for minimizing fan noise.
HDB Fan
Using COUGAR
The GEX X2 series features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.
Smart Zero Fan
The fan will be set in motion when the PSU loading is going over 30% for minimizing fan noise.
HDB Fan
Using COUGAR
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1000 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 89% |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 2 |
| PCI Express power connectors (8-pin) | 6 |
| PCI Express power connectors (16-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 65 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors Design of the supported motherboards. | ATX |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 26 dB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | AC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.54 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 190 mm |
| Package depth The distance from the front to the back of the packaging. | 326 mm |
| Package height The distance from the top to the bottom of the packaging. | 115 mm |
| Package weight Weight of the packaged product. | 1.64 kg |
| SKU | 756251 |
| MPN | GEX X2 1000 |
| Brand | Cougar |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://cougargaming.com/ |
