COUGAR Gaming CGR GEXP-850, 650 W, 100 - 240 V, 50/60 Hz, 12-6 A, 100 W, 849.6 W

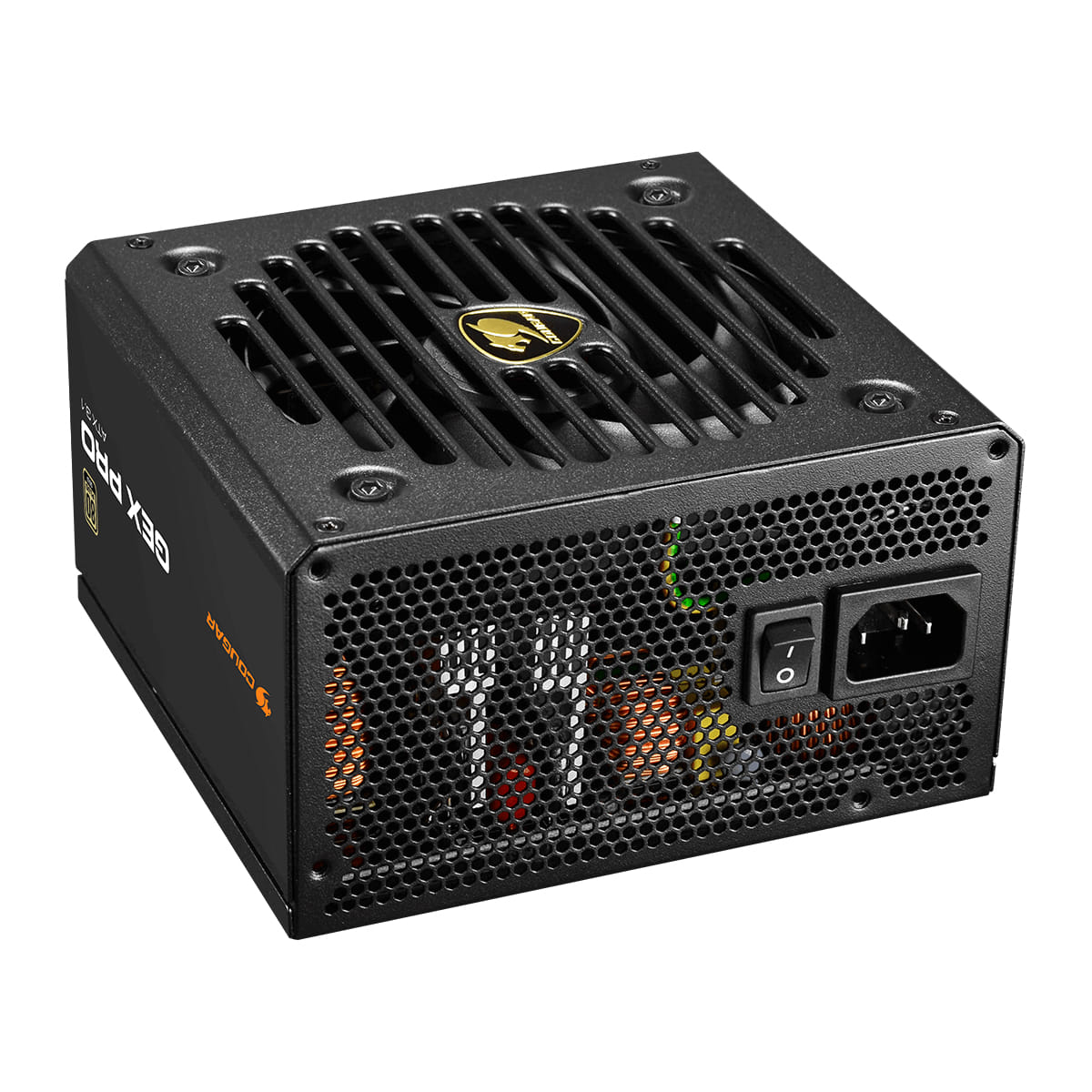

GEX PRO 650/750/850W
Outstanding performance and exceptional value
The COUGAR GEX PRO series boasts high-quality 80 PLUS Gold certification, achieving up to 91% conversion efficiency. Utilizing a native PCIe 12V-2X6 connector design, this power supply delivers power to next-gen graphics cards through a single 12+4-pin cable, bringing them into compliance with Intel's ATX 3.1 standard. With flawless power delivery in 40DegC environments, it is designed for users who are price-conscious but unwilling to compromise on reliability and silence.
ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR GEX PRO series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Gold efficiency rating and Cybenetics certifications (750W/850W), it offers high-quality stability, durability, and reliability.
The COUGAR GEX PRO series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100?s.
Designed for the New Era of PCIe Gen 5.1
The COUGAR GEX PRO series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a modular native PCIe 12V-2X6 connector, the 650mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.
Notice: Before using the PCIe 12+4pin cable, please go to the graphics card official website to check the recommended wattage requirements.?
High Performance
Efficiency
The GEX PRO series features a highly efficient design that surpasses the 80 PLUS Gold standard, to help you save money on your electricity bill.
Perfect Fan Speed to Noise Ratio
Using COUGAR's exclusive 120mm HDB fan, the advanced fan blade design enhances airflow smoothness and optimizes silent performance.
HDB Fan
Compared to other fan bearing types, the HDB fan is considered the best in its class for operating noise and expected lifespan. Fluid dynamics and fluid-based characteristics greatly reduce friction and vibration, resulting in better reliability and quieter operation.
More Stability. Less Noise.
Crafted for quiet operation, COUGAR's exclusive 120mm HDB fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.
Refined Regulation. Stable Operation
It includes 105DegC Japanese capacitors standby power to ensure keep providing computer with stable electrical supply. ??
- Tight 2% voltage regulation for ultra-stable operation.
- Optimally perform in 40C working temperature environments.
Easy PC Builds
One Size Fits All
At 140mm in length, the GEX PRO is one of the most compact, fully modular PSUs. it fits in a wide range of cases, giving you additional flexibility for building your PC.
Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.
Fully Modular Cables / Embossed black cables
Connect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.
Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill.
Durable HDB Fan
COUGAR's 120mm HDB fan: efficient cooling, minimal noise.
Compact PSU Size for All PC Cases
Its 140mm length suits most cases and allows for easy installation.
Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow.
Silent Spin
Groundbreaking grooved fan blade design lets you experience noiseless gaming.
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms.
Flawless Operation at 40DegC
Powerful performance at 40DegC ambient temperature.
Outstanding performance and exceptional value
The COUGAR GEX PRO series boasts high-quality 80 PLUS Gold certification, achieving up to 91% conversion efficiency. Utilizing a native PCIe 12V-2X6 connector design, this power supply delivers power to next-gen graphics cards through a single 12+4-pin cable, bringing them into compliance with Intel's ATX 3.1 standard. With flawless power delivery in 40DegC environments, it is designed for users who are price-conscious but unwilling to compromise on reliability and silence.
ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR GEX PRO series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Gold efficiency rating and Cybenetics certifications (750W/850W), it offers high-quality stability, durability, and reliability.
The COUGAR GEX PRO series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100?s.
Designed for the New Era of PCIe Gen 5.1
The COUGAR GEX PRO series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a modular native PCIe 12V-2X6 connector, the 650mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.
Notice: Before using the PCIe 12+4pin cable, please go to the graphics card official website to check the recommended wattage requirements.?
High Performance
Efficiency
The GEX PRO series features a highly efficient design that surpasses the 80 PLUS Gold standard, to help you save money on your electricity bill.
Perfect Fan Speed to Noise Ratio
Using COUGAR's exclusive 120mm HDB fan, the advanced fan blade design enhances airflow smoothness and optimizes silent performance.
HDB Fan
Compared to other fan bearing types, the HDB fan is considered the best in its class for operating noise and expected lifespan. Fluid dynamics and fluid-based characteristics greatly reduce friction and vibration, resulting in better reliability and quieter operation.
More Stability. Less Noise.
Crafted for quiet operation, COUGAR's exclusive 120mm HDB fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.
Refined Regulation. Stable Operation
It includes 105DegC Japanese capacitors standby power to ensure keep providing computer with stable electrical supply. ??
- Tight 2% voltage regulation for ultra-stable operation.
- Optimally perform in 40C working temperature environments.
Easy PC Builds
One Size Fits All
At 140mm in length, the GEX PRO is one of the most compact, fully modular PSUs. it fits in a wide range of cases, giving you additional flexibility for building your PC.
Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.
Fully Modular Cables / Embossed black cables
Connect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.
Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill.
Durable HDB Fan
COUGAR's 120mm HDB fan: efficient cooling, minimal noise.
Compact PSU Size for All PC Cases
Its 140mm length suits most cases and allows for easy installation.
Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow.
Silent Spin
Groundbreaking grooved fan blade design lets you experience noiseless gaming.
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms.
Flawless Operation at 40DegC
Powerful performance at 40DegC ambient temperature.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 850 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12-6 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 400,520,640,760 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 70 cm |
| PCI Express connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Bearing technology | HDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 56 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.18 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 215 mm |
| Package depth The distance from the front to the back of the packaging. | 330 mm |
| Package height The distance from the top to the bottom of the packaging. | 107 mm |
| Package weight Weight of the packaged product. | 2.19 kg |
| Package type The type of product package e.g. box. | Box |
| SKU | 815010 |
| MPN | GEX PRO 850 |
| Brand | Cougar |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://cougargaming.com/ |
