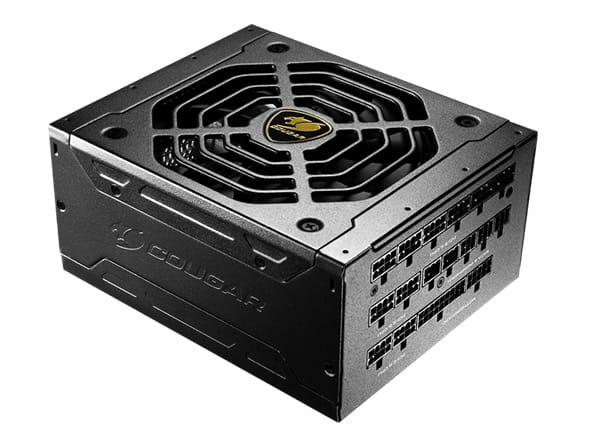

COUGAR GEX1050 is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40C environments. Efficient, silent and durable, GEX1050 is the best answer for those looking for the best value in PSU.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1050 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 13 - 6 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of PATA power connectors | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 65 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) |
|
| PCI Express connector |
|
| Cabling type | Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| Silent mode |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan location | Top |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Packaging content | |
| Cables included | CPU, PATA, PCIe |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 86 mm |
| Height The measurement of the product from head to foot or from base to top. | 150 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.09 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 331 mm |
| Package depth The distance from the front to the back of the packaging. | 107 mm |
| Package height The distance from the top to the bottom of the packaging. | 229 mm |
| Package weight Weight of the packaged product. | 3.59 kg |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, RoHS |
| SKU | 574567 |
| MPN | GEX1050 |
| Brand | Cougar |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://cougargaming.com/ |
