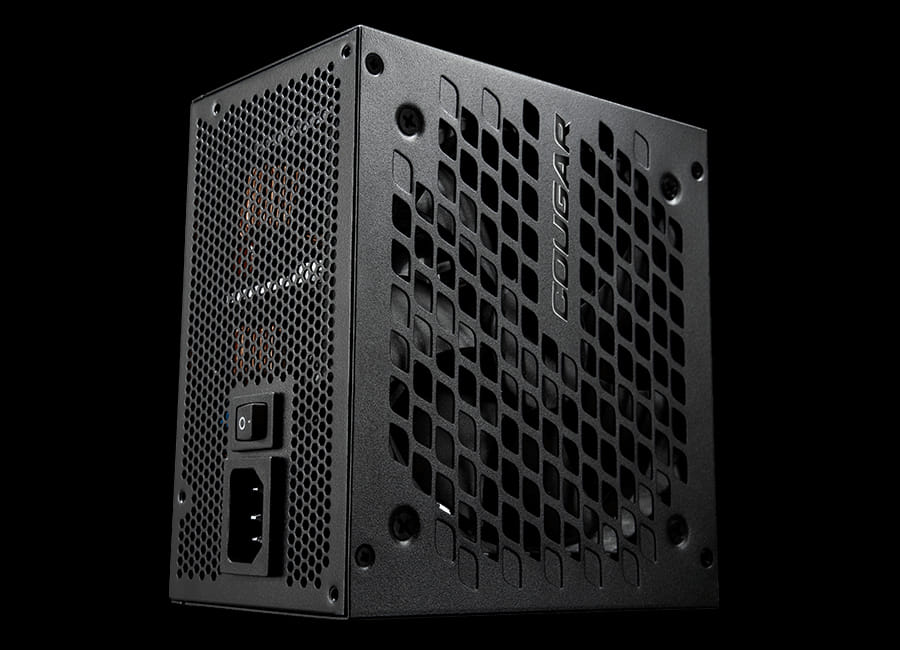

COUGAR Gaming CGR GC 650, 650 W, 200 240 V, 47 63 Hz, 6.3 A, 100 W, 649.2 W
GEC
550W / 650W / 750W
COUGAR GEC series is high quality 80Plus 230V EU Gold certified with superior power delivery, efficiency, silence and durability. It will be a reliable PSU for those who are looking for the best gaming experience.
Reliable Efficiency Certification with 80 Plus
Highly efficient output and 80Plus 230V EU Gold certification. It can continue to provide excellent efficiency and avoid waste and minimize the electric bill.
550W / 650W / 750W
COUGAR GEC series is high quality 80Plus 230V EU Gold certified with superior power delivery, efficiency, silence and durability. It will be a reliable PSU for those who are looking for the best gaming experience.
Reliable Efficiency Certification with 80 Plus
Highly efficient output and 80Plus 230V EU Gold certification. It can continue to provide excellent efficiency and avoid waste and minimize the electric bill.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 650 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6.3 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 649.2 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 60 cm |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 140 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.45 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 510 mm |
| Package depth The distance from the front to the back of the packaging. | 263 mm |
| Package height The distance from the top to the bottom of the packaging. | 231 mm |
| Package weight Weight of the packaged product. | 2.25 kg |
| Package type The type of product package e.g. box. | Box |
| SKU | 630000 |
| MPN | CGR GC-650 |
| Brand | Cougar |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://cougargaming.com/ |
