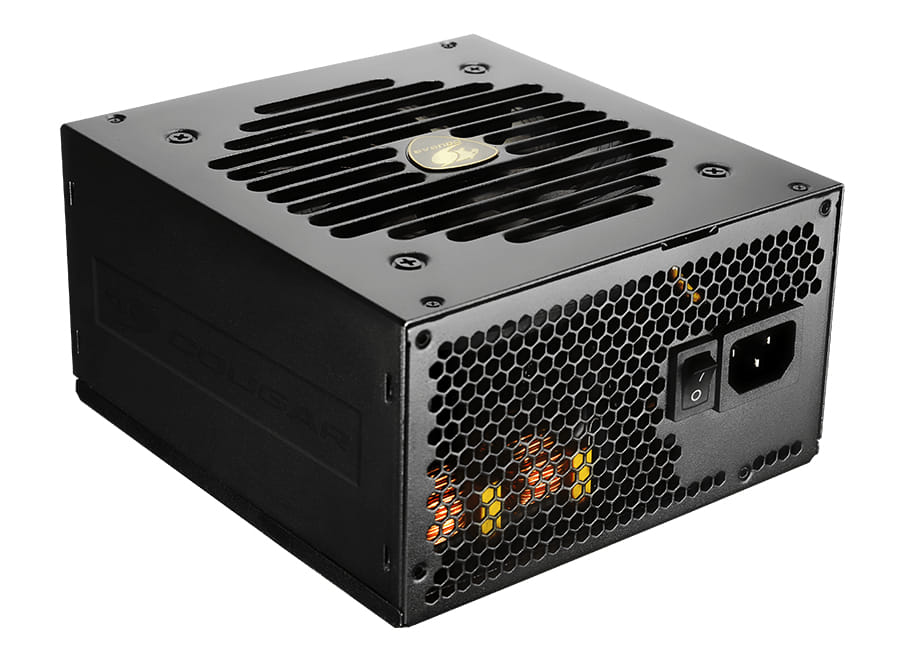

COUGAR Gaming GEX750, 750 W, 100 - 240 V, 50/60 Hz, 10 - 5 A, 10 A, 5 A
COUGAR GEX is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40 C environments. Efficient, silent and durable, GEX is the best answer for those looking for the best value in PSUs.
Extreme Cooling System
Using COUGAR 's exclusive 120 mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.
Durability
Firstly, GEX has been designed and thoroughly tested to perform optimally in 40 C working temperature environments.
Second, it includes 105 C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.
Stability
GEX 's LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stabler operation.
Compact
- Flat and long modular cables for better airflow and a tidier case
- 100% external cable management: get less cable clutter and a cleaner build!
Extreme Cooling System
Using COUGAR 's exclusive 120 mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.
Durability
Firstly, GEX has been designed and thoroughly tested to perform optimally in 40 C working temperature environments.
Second, it includes 105 C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.
Stability
GEX 's LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stabler operation.
Compact
- Flat and long modular cables for better airflow and a tidier case
- 100% external cable management: get less cable clutter and a cleaner build!
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 750 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 - 5 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 0.3 W |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 120,450 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 6 |
| Peripheral (Molex) power cable length | 120,450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) |
|
| PCI Express connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | HDB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Certificates | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.46 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 229 mm |
| Package depth The distance from the front to the back of the packaging. | 331 mm |
| Package height The distance from the top to the bottom of the packaging. | 107 mm |
| Package weight Weight of the packaged product. | 2.58 kg |
| Package type The type of product package e.g. box. | Box |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
| Warranty period | 5 year(s) |
| SKU | 490742 |
| MPN | GEX750 |
| Brand | Cougar |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | Gaming |
