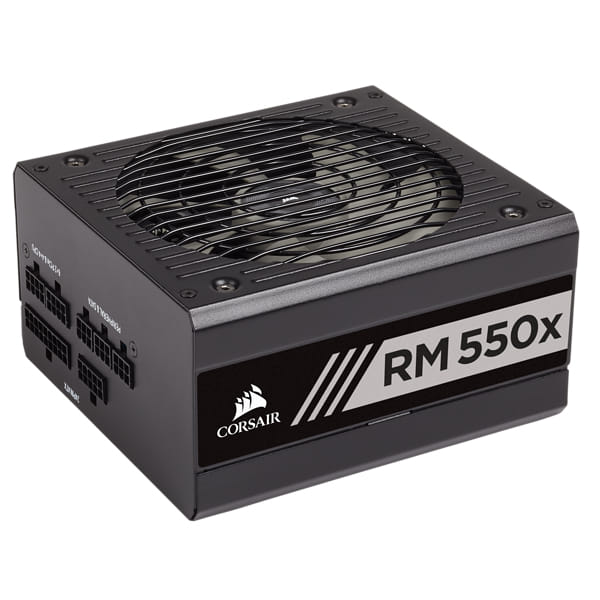

Corsair RMx Series RM550x, 550 W, 100 - 240 V, 47 - 63 Hz, 5 - 10 A, 130 W, 549.6 W
CORSAIR RM550x series fully modular power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC, with virtually silent operation.
TUNED FOR LOW-NOISE OPERATION
RMx power supplies are tuned with a low-noise fan curve to ensure that, even at full load, fan noise is kept to a minimum.
80 PLUS GOLD CERTIFIED
The RM550x can deliver power with over 90% efficiency to keep energy consumption, noise, temperatures, and your power bill low.
100% ALL JAPANESE 105DegC CAPACITORS
By using high-end electrolytic capacitors, the RM550x delivers the unwavering power and long-term reliability youve come to expect from a CORSAIR power supply.
ZERO RPM FAN MODE
At low and medium loads the RM550xs cooling fan doesnt spin until you need it, for near-silent operation.
COMPACT SIZE
The RM550xs 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases
FULLY MODULAR CABLES
The RM550xs fully modular power cables mean that you only connect the cables your system needs, making clean and tidy builds easier.
TUNED FOR LOW-NOISE OPERATION
RMx power supplies are tuned with a low-noise fan curve to ensure that, even at full load, fan noise is kept to a minimum.
80 PLUS GOLD CERTIFIED
The RM550x can deliver power with over 90% efficiency to keep energy consumption, noise, temperatures, and your power bill low.
100% ALL JAPANESE 105DegC CAPACITORS
By using high-end electrolytic capacitors, the RM550x delivers the unwavering power and long-term reliability youve come to expect from a CORSAIR power supply.
ZERO RPM FAN MODE
At low and medium loads the RM550xs cooling fan doesnt spin until you need it, for near-silent operation.
COMPACT SIZE
The RM550xs 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases
FULLY MODULAR CABLES
The RM550xs fully modular power cables mean that you only connect the cables your system needs, making clean and tidy builds easier.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 550 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 - 10 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 549.6 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 45.8 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over voltage, Short circuit, Overheating |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 750 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 750 mm |
| EPS power connector (8-pin) |
 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 65 cm |
| ATX Power connector (24-pin) |
|
| Floppy drive power connector | 1 |
| PCI Express connector |
|
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.4 |
| EPS version | 2.92 |
| Continuous output rated temperature | 50 °C |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Case badge included |
|
| Other features | |
| Cable ties included |
|
| SKU | 494021 |
| MPN | CP-9020177-EU |
| Brand | Corsair |
| Product Condition | Brand New/Unused |
| Product Use | General |
