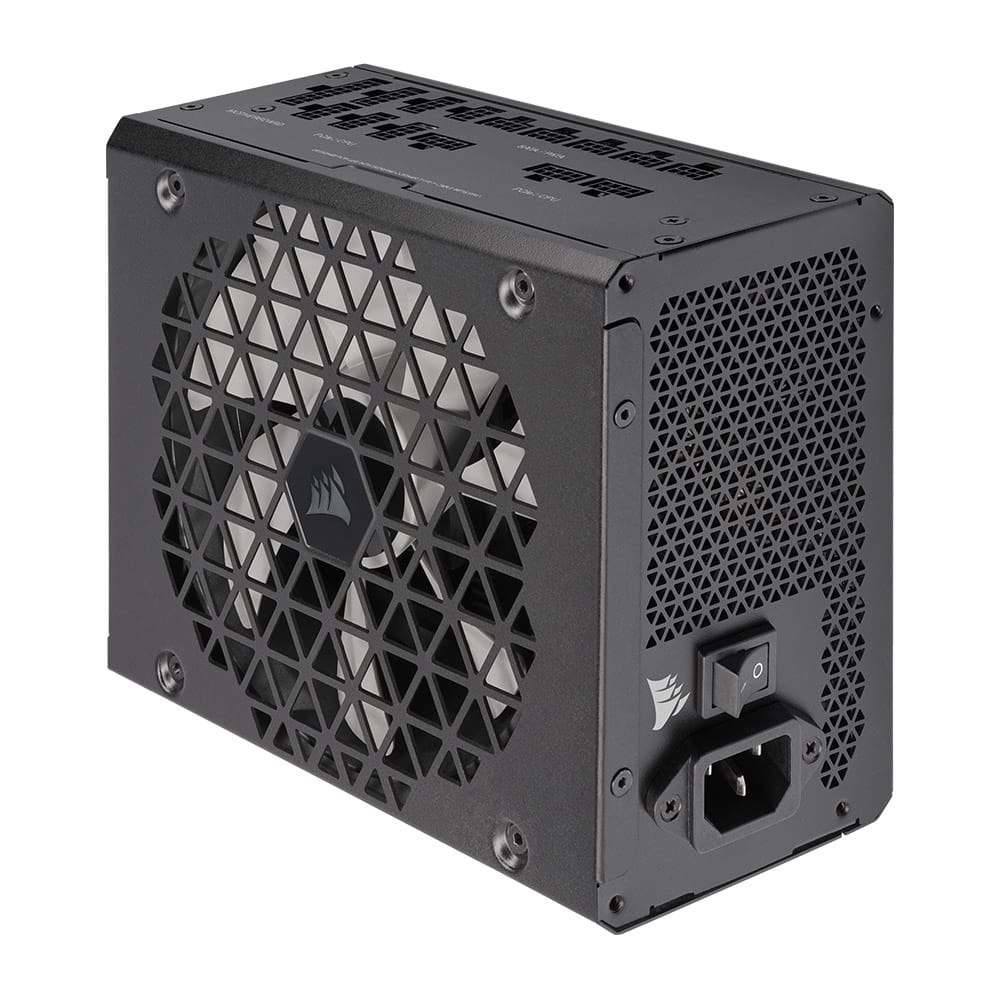

CORSAIR RMx SHIFT Series fully modular power supplies boast a revolutionary patent-pending side cable interface to keep all your connections within easy reach, for exceptionally convenient 80 PLUS Gold efficient power.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1000 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12 - 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 150 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 16 |
| Number of PATA power connectors | 8 |
| SATA power cable length | 800 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 8 |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 7 |
| PCI Express power cable length | 65 cm |
| ATX Power connector (24-pin) |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors Design of the supported motherboards. | ATX |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.0 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 32 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Packaging content | |
| Cables included | AC, DC |
| Cable tie(s) included |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 180 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.9 kg |
| SKU | 713402 |
| MPN | CP-9020253-AU |
| Brand | Corsair |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.corsair.com/ |
