High airflow, industrial good looks, and an easy to use, modern layout.

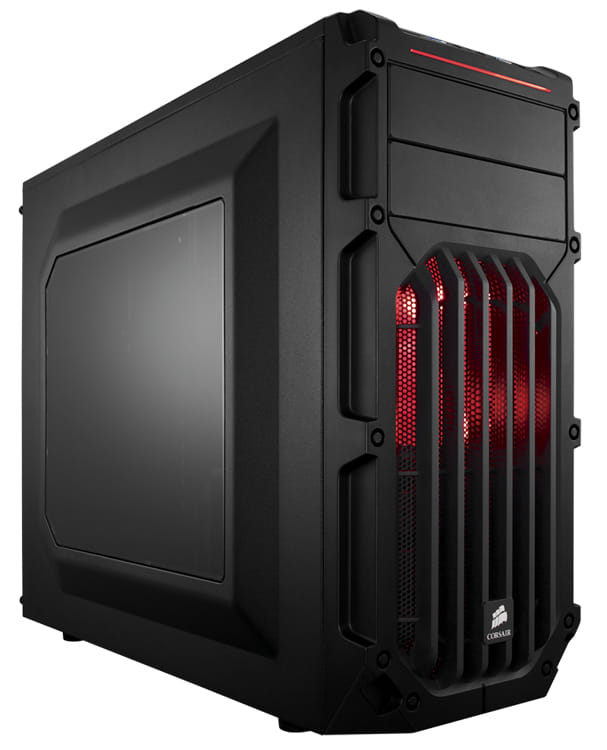

Carbide Series SPEC-03 has an extremely aggressive, game-oriented design and superior air cooling for your high-performance GPUs. The cleverly designed interior allows for the included LED-lit front intake fan to draw cold air directly to your graphics cards, and there’s room for up to six fans for massive cooling potential.
There’s a huge windowed side panel that lets you admire your work, and the cable routing system and dust filters help you build a clean system and keep it clean, too. Tool-free installation of up to three 3.5” hard drives and two solid-state drives make it easy to add and upgrade storage. And, it’s easy to live with, too -- the dual front panel USB 3.0 ports let you take advantage of the latest high-speed storage devices.

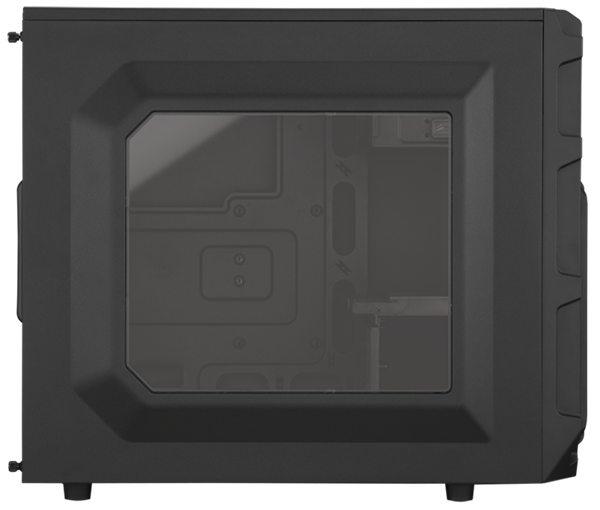

Huge side panel windowThe aggressive look of the SPEC-03 makes it look great on the outside, but there’s beauty on the inside of a well-built system, too. The large side panel window lets you show it off.
The 120mm front intake fan is bathed in soft LED lighting, and it’s oriented to draw cool air directly across your graphics cards. And if you want even more ventilation, you can add a second 120mm fan or even dual 140mm fans.
Flexible cooling potentialLike all Corsair cases, the SPEC-03 is designed for cooling, so you’re covered if you’re overclocking, running multiple GPUs, or if you just want more airflow. There are mounting points for up to six fans, including dual front 140mm or 120mm fans, dual 120mm fans on top, a bottom-mounted 120mm fan, and a rear 120mm fan.
In addition to the two standard 5.25” optical drive bays, there are three 3.5” hard drive bays and two 2.5” solid-state drive bays.
Easy system builds, maintenance and upgradesBuilds should be easy, no matter what your budget. Drive installation is tool-free, and you get cable routing holes for neater-looking builds and better airflow. And, there’s a CPU cutout to allow for cooling upgrades without removing the motherboard. The front intake fan filters help keep dust out of the interior, and the front panel has dual USB 3.0 ports for fast performance from USB flash drives and portable hard drives.
Contents and Specifications
Package contents
- Carbide Series SPEC-03 Mid-Tower Gaming Case
- Accessories box with screws, zip ties, and other mounting hardware
- Warranty and Support Information
Compatibility
- Mini ITX, Micro ATX, ATX motherboards
Technical specifications
- Tons of fan mounts:
- Front – 2 x 140/120mm (1 x 120mm LED included)
- Top – 2 x 120mm
- Rear – 120mm (included)
- Bottom – 120mm
- 2 x USB 3.0 front ports with internal connector
- Large side panel window
(x3) 3.5in
(x2) 2.5inCase MaterialSteelCase Power SupplyATX (not included)External Connections(x1) USB 2.0
(x1) USB 3.0
(x1) Headphone Port
(x1) Microphone PortFan Mount LocationsFront: (x2) 120/140mm
Top: (x2) 120mm
Rear: (x1) 120mm
Bottom: (x1) 120mmFans IncludedFront: (x1) 120mm
Rear: (x1) 120mmRadiator Mount LocationsRear: 120mmCompatible Corsair Liquid CoolersH55, H60, H75, H80
- Cable routing and CPU cooler backplate motherboard cutouts
- Seven PCIe slots with room for long graphics cards up to 426mm long
- Install up to three 3.5” and two 2.5” drives simultaneously – tool free
- Dust filters for front and PSU inta
| Design | |
| Form factor The shape or design of the product. | Midi Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported motherboard form factors Design of the supported motherboards. | ATX,Micro ATX,Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 3 |
| Number of 5.25" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives. | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 3 |
| Number of expansion slots | 7 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Red |
| Illumination location | Front |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Cable management Description of improved cable management |
|
| Reset button |
|
| Maximum CPU cooler height | 15.7 cm |
| Maximum graphics card length | 42.6 cm |
| Maximum PSU length | 28.8 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
|
| Power supply location Where the power supply is positioned. | Bottom |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 5 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 185 mm |
| Depth The distance from the front to the back of something. | 445 mm |
| Height The measurement of the product from head to foot or from base to top. | 440 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.65 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 246 mm |
| Package depth The distance from the front to the back of the packaging. | 474 mm |
| Package height The distance from the top to the bottom of the packaging. | 558 mm |
| Package weight Weight of the packaged product. | 6.45 kg |
| SKU | 211911 |
| MPN | CC-9011052-WW |
| Brand | Corsair |
| Product Condition | Brand New/Unused |
