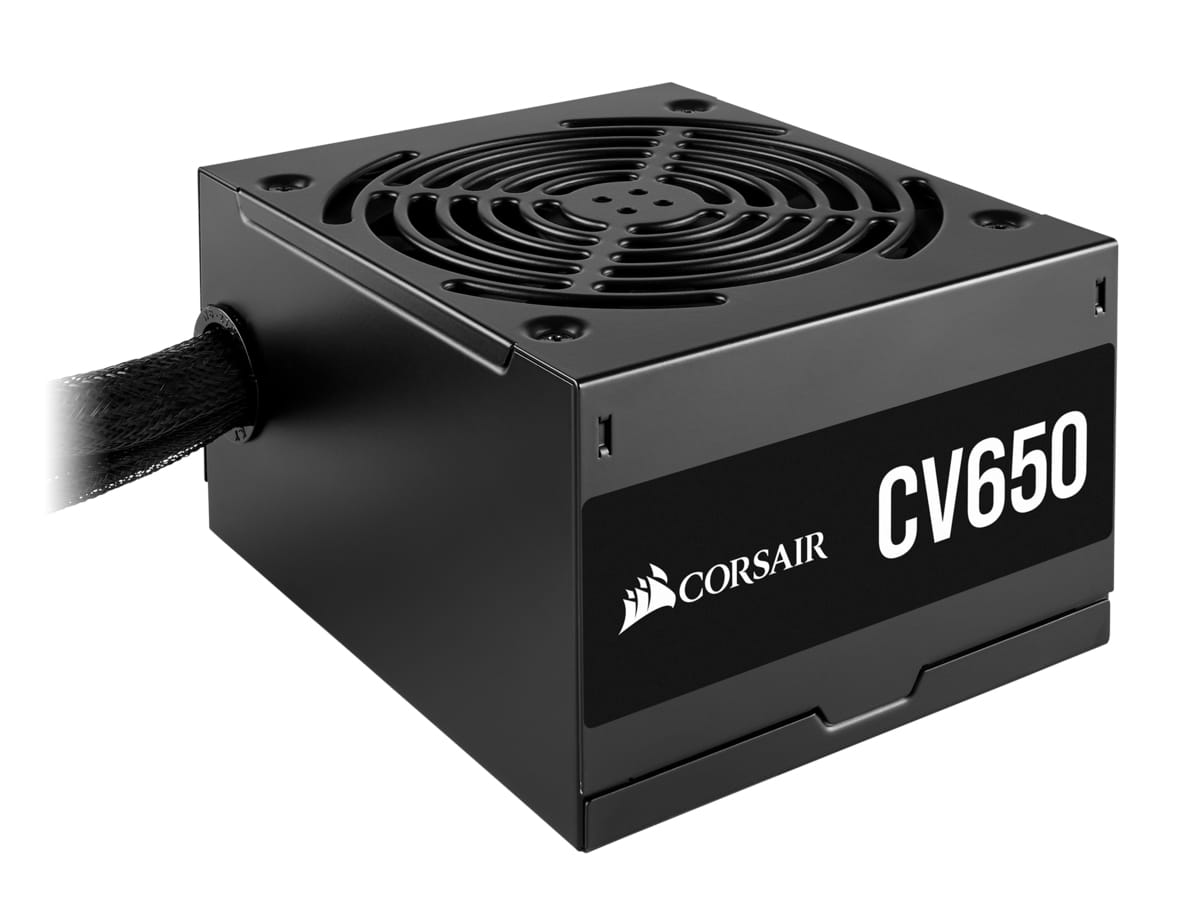

Corsair 650W CV Series CV650 V2, 80 PLUS Bronze Certified, up to 88% Efficiency, 125mm Compact Design, EPS 8PIN x 2, PCI-E x 2, ATX Power Supply, PSU
CORSAIR CV power supplies are ideal for powering your new home or office PC, with 80 PLUS Bronze efficiency guaranteed to continuously deliver full wattage to your system. A 120mm thermally controlled cooling fan keeps fan noise to a minimum, while a compact casing makes for an easy fit into nearly any modern PC case. Black sleeved cables and a black powder-coated casing seamlessly fit into your PC 's style. Backed by a comprehensive three-year warranty, CV Series power supplies are a strong start for your next new PC.
80 PLUS Bronze certified efficiency provides up to 88% operational efficiency, generating less heat and lowering your energy costs.
CORSAIR CV Series power supplies are guaranteed to deliver their full rated wattage of continuous power.
A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.
Compact 125mm-long casing ensures an easy fit in almost all modern PC cases.
80 PLUS Bronze certified efficiency provides up to 88% operational efficiency, generating less heat and lowering your energy costs.
CORSAIR CV Series power supplies are guaranteed to deliver their full rated wattage of continuous power.
A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.
Compact 125mm-long casing ensures an easy fit in almost all modern PC cases.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 650 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 43 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 624 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 52 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 7 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 120,450 mm |
| EPS power connector (8-pin) |
 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 67 cm |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.31 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| Packaging content | |
| Cables included | AC |
| Cable tie(s) included |
|
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 494024 |
| MPN | CP-9020236-AU |
| Brand | Corsair |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.corsair.com/ |
