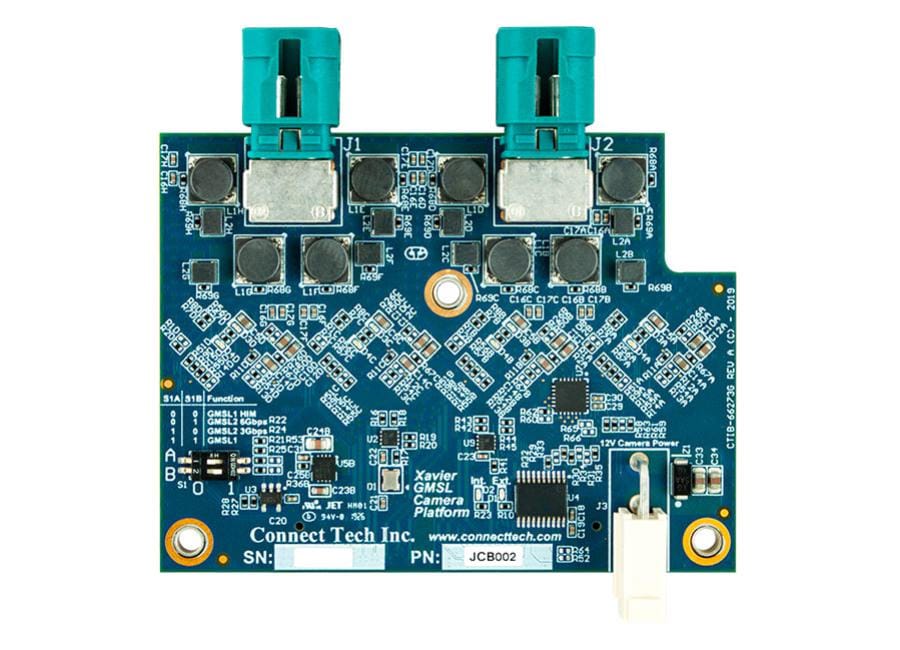

Connect Tech GMSL2 Input Camera Board
Connect Tech's GMSL camera platform is an expansion board that allows up to 8 cameras to be connected to the Jetson AGX Xavier module. Since many different types of GMSL cameras are available, the JCB002 has user selectable options to interface with either GMSL1 or GMSL2 protocols at different operating frequencies. Power to the cameras is provided by PoC (Power over Coax) so all the data, control signals, and power are sent through a single 50 Ohm Coaxial cable. This allows for flexibility in cable routing and ease of installation in automotive applications.
GMSL1 or GMSL2 protocols
Internal or External Camera power
Power over Coax
Compact size
4x mini coax connector
Input voltage protection
Software power cycle
| SKU | 839211 |
| MPN | JCB002 |
| Brand | Connect Tech |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
