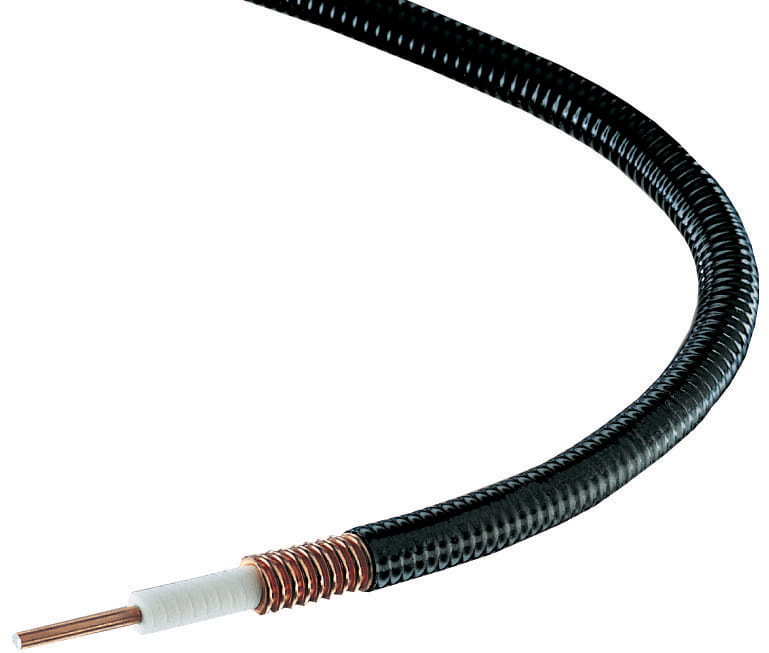

CommScope FSJ4-50B, Black
CommScope FSJ4-50B. Product colour: Black, Impedance: 50 Ohms, Frequency band: 0.001 - 10.2 GHz
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 0.001 - 10.2 GHz |
| Jacket outer diameter | 1.35 cm |
| Jacket material | Polyethylene (PE) |
| Conductor material | Copper |
| Conductor size | 3.556 mm |
| Conductor composition size | 12.192 mm |
| Insulation material What the protective coating for electrical insulation of the cable is made of, e.g. PVC, teflon, rubber. | Foamed polyethylene |
| Insulation outer diameter | 8.89 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -55 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -70 - 85 °C |
| Certificates | |
| Certification | ISO 9001:2008, CENELEC |
| Compliance certificates | RoHS |
| SKU | 769973 |
| MPN | F4A-PNMNM-3M5 |
| Brand | CommScope |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.commscope.com/ |
