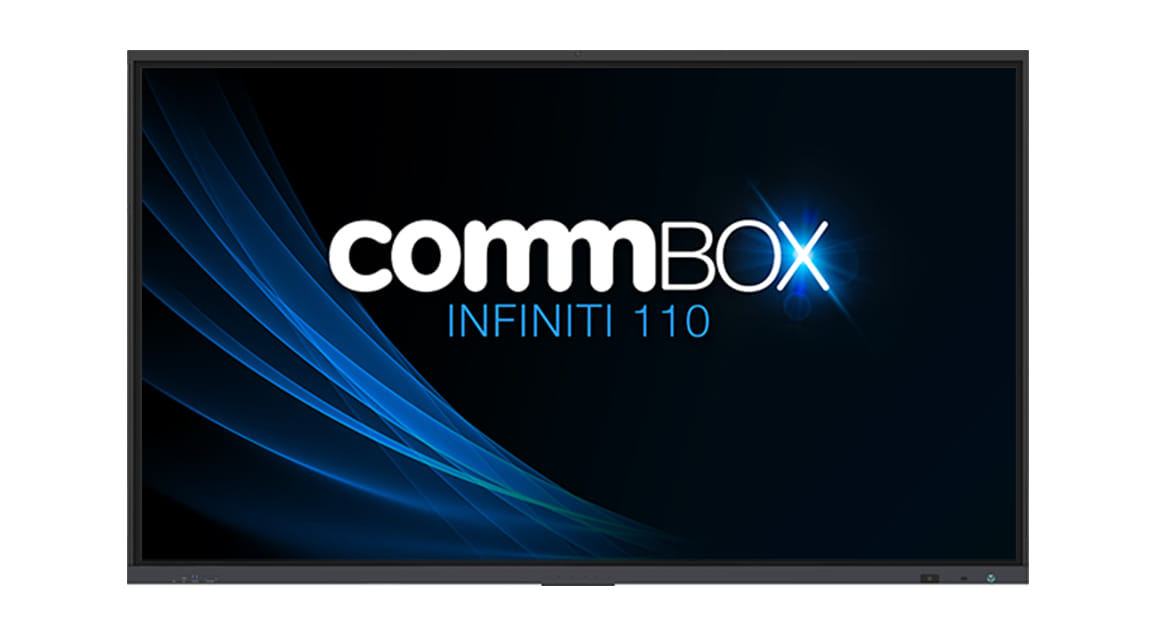

COMMBOX CBII110, 2.79 m (110"), 450 cd/m2, 1.07 billion colours, 3840 x 2160 pixels, 4K Ultra HD, Direct-LED
The ideal screen for large meeting spaces, the Infiniti 110 has an impressive 110-inch screen and has been made to work seamlessly with Microsoft Teams Rooms and Zoom Rooms.
The Infiniti 110 is the ultimate interactive touchscreen for large spaces. With an impressive 110-inch wide screen and an AVIXA standard for clear content visibility, every participant in the room can fully see, engage, and contribute to the discussion.
The Infiniti 110 is designed to work seamlessly with Microsoft Teams Rooms and Zoom Rooms, making it an ideal choice for corporate boardrooms, conference halls, and other large meeting spaces.
Display
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
2.79 m (110")
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
450 cd/m²
Display number of colours
1.07 billion colours
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
3840 x 2160 pixels
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
LED backlight
A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
LED backlighting type
Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.
Direct-LED
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:9
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
1200:1
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
8 ms
Maximum refresh rate
60 Hz
Touchscreen
A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Touchscreen type
There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.
Infrared
Number of simultaneous touchpoints
20
Touch system response time
9 ms
Touch object size (min)
3 mm
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
178°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
178°
Pixel pitch
This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.
0.6345 x 0.6345 mm
Colour gamut
80%
Accuracy touch
1 mm
Computer system
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
Windows 10
Built-in processor
Whether or not a processor is built into the device.
Processor frequency
The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.
1.8 GHz
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
8
Maximum internal memory
The maximum internal memory which is available in the product.
64 GB
RAM capacity
8 GB
Graphics card family
Intel
Audio
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Number of built-in speakers
2
Speaker power
16 W
Built-in subwoofer
The product has built-in subwoofer, which is a loudspeaker component designed to reproduce very low bass frequencies.
Subwoofer RMS power
This is a measure of the continuous power (RMS power) produced by a subwoofer.
16 W
Built-in microphone
Microphone that is found inside the product.
Projector
Built-in projector
The device has an internal projector, to show images.
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
USB connector type
The type of USB connector/port that this product has.
USB Type-A
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
4
USB Type-C ports quantity
1
HDMI version
2.0
HDMI output ports quantity
1
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Line-in
Line-out
OPS slot
1
S/PDIF out port
S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
RS-232 ports
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.
1
Ergonomics
Product colour
The colour e.g. red, blue, green, black, white.
Black, Grey
VESA mounting
Panel mounting interface
The product can be used wih VESA mounting interfaces.
800 x 100 mm
Wall mountable
The product can be mounted on (attached to ) a wall.
Power
Power consumption (max)
The maximum amount of power used by the device.
800 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.5 W
DC input voltage
5 V
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 - 60 Hz
Battery type
Description of battery supplied with the product, such battery form factor (e.g. AA/AAA).
AAA
Number of batteries supported
The number of batteries that can be used with the product.
2
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
2507.1 mm
Depth
The distance from the front to the back of something.
152.9 mm
Height
The measurement of the product from head to foot or from base to top.
1482.1 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
134 kg
Packaging data
Package width
The distance from one side of the packaging to the other.
2800 mm
Package depth
The distance from the front to the back of the packaging.
435 mm
Package height
The distance from the top to the bottom of the packaging.
1550 mm
Package weight
Weight of the packaged product.
193 kg
Packaging content
Cables included
HDMI, USB Type-A to USB Type-B
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
