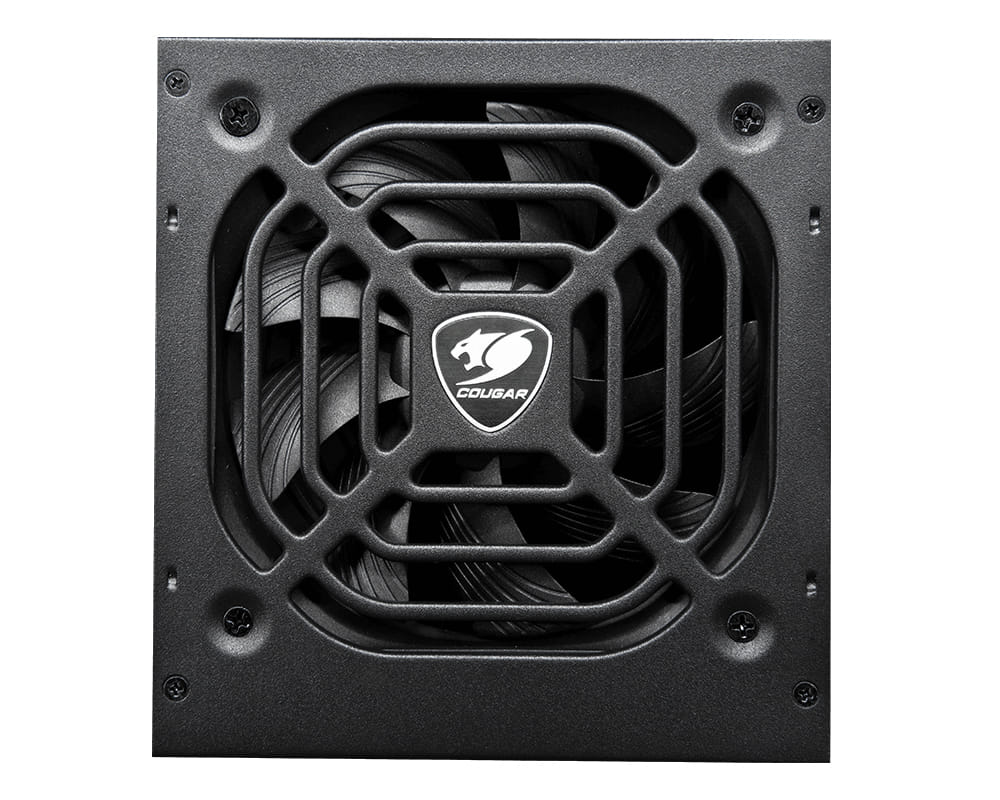

COUGAR Gaming STC500, 500 W, 220 - 240 V, 50 Hz, Active, 110 W, 456 W
COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 500 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 220 - 240 V |
| AC input frequency | 50 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 0.3 W |
| Combined power (+5Vsb) | 2.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 42 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 5 |
| Number of PATA power connectors | 2 |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS |
| Purpose What the product is used for. | PC/Server |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| SKU | 756263 |
| MPN | STC500 |
| Brand | Cougar |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://cougargaming.com/ |
