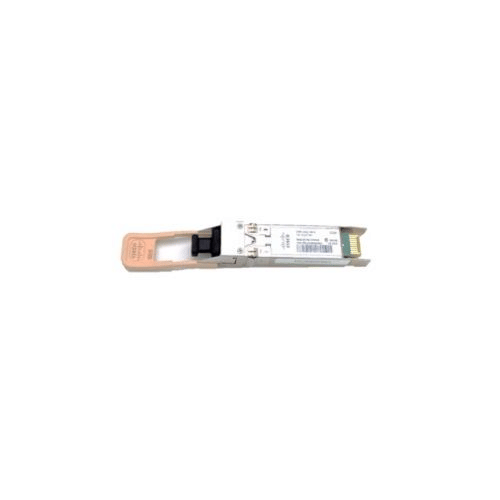

SFP Transceiver Module - Cable Distance: 300/400m (OM3/OM4) - Max Power Consumption: 1.2W - Wavelength: 850nm - Cable Type: MMF
FEATURES
•Interoperable with other IEEE-compliant 25G interfaces where applicable
•Certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability
•High-speed connectivity compliant to IEEE 802.3by and IEEE 802.3cc
SPECIFICATIONS
• Product Type: SFP
• Cable Distance: 300/400m (OM3/OM4)
• Max Power Consumption: 1.2W
• Pull Tab Colour: Peach
• Wavelength: 850nm
• Cable Type: MMF
• Core Size (Microns): 50.0
• Modal Bandwidth: 2000 (OM3), 4700 (OM4)
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 850 nm |
| Ethernet interface type | 25 Gigabit Ethernet |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Green, Grey |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Package weight Weight of the packaged product. | 200 g |
| SKU | 504722 |
| MPN | SFP-10/25G-CSR-S= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
