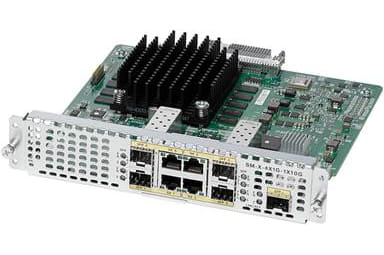

Cisco SM X Module With 4-Port Dual Mode GE/SFP
Item No:
734609
MPN:
SM-X-4X1G-1X10G=
$13,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Cisco SM X 4X1G 1X10G=, 10 Gigabit Ethernet, Gigabit Ethernet, 1000,10000 Mbit/s, SFP, SFP , Cisco 4000, 0 40 DegC, 40 70 DegC
Cisco Gigabit Ethernet WAN Modules bring high density Small Form Factor Pluggable (SFP) and copper (RJ 45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter VLAN routing, and high speed connectivity to LAN switches and servers.
The ports on these modules work as routed Layer 3 ports. Layer 2 switching between local ports on the module or between ports on the module and other ports within the router system is not supported. The port terminates Layer 2 trunks from externally connected switches, and Layer 2 trunk and VLAN information is not switched onto other ports in the system. The host router routes all traffic entering these modules.
Cisco Gigabit Ethernet WAN Modules do not support Power over Ethernet (PoE).
The ports on these modules work as routed Layer 3 ports. Layer 2 switching between local ports on the module or between ports on the module and other ports within the router system is not supported. The port terminates Layer 2 trunks from externally connected switches, and Layer 2 trunk and VLAN information is not switched onto other ports in the system. The host router routes all traffic entering these modules.
Cisco Gigabit Ethernet WAN Modules do not support Power over Ethernet (PoE).
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,10000 Mbit/s |
| Optical fiber | |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP, SFP+ |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| I/O ports An interface on a device to which you can connect another device. | 4 x GE/SFP 1 x SFP+ |
| Performance | |
| Compatibility The other products, software and hardware this product can be used with. | Cisco 4000 |
| Ergonomics | |
| Connectivity LEDs |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 206 x 207 x 40 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 848 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 734609 |
| MPN | SM-X-4X1G-1X10G= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
