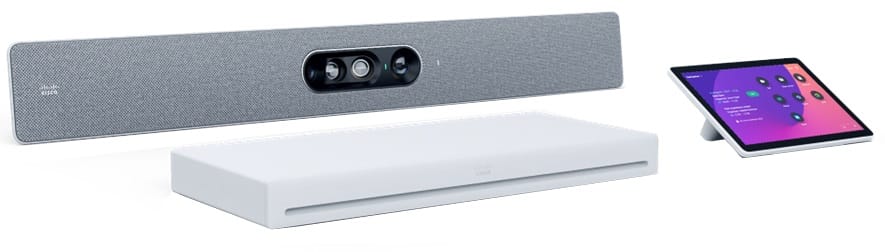

Cisco Room Kit EQ PTZ 4K Camera
Item No:
773858
MPN:
CS-KIT-EQ-4K-K9
$30,701.63
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
RoomOS 11.1.2 and later (for native Webex meetings and video interoperability for Microsoft Teams, Zoom, and Google Meet); Cisco PTZ 4K Camera; 4x CMOS image sensors with machine intelligent switching (up to 20MP resolution per sensor); 7x zoom (5x native optical zoom with digital zoom enhancement); Automatic group framing (audio + face detect); Speaker tracking; Frames camera mode: intelligent people framing for equitable views; 5056 x 3888 pixel resolution
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Product type The sub-category of the product. | Group video conferencing system |
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 5K Ultra HD |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 5056 x 3888 pixels |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Video formats supported The type of video formats that can be used by this device. | H.263, H.264, H.265 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Audio system full duplex |
|
| Voice codecs | G.711, G.722, G.722.1, G.729 |
| Automatic gain control |
|
| Ports & interfaces | |
| HDMI output ports quantity | 3 |
| HDMI input ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power over Ethernet (PoE) ports quantity | 4 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Camera | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 20x |
| Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology. | 12x |
| Combined zoom | 240x |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Image sensor size The total dimensions of the sensor within the camera, given in inches (''). | 1/1.7" |
| Features | |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 20 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 473 mm |
| Depth The distance from the front to the back of something. | 202 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.33 kg |
| SKU | 773858 |
| MPN | CS-KIT-EQ-4K-K9 |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
