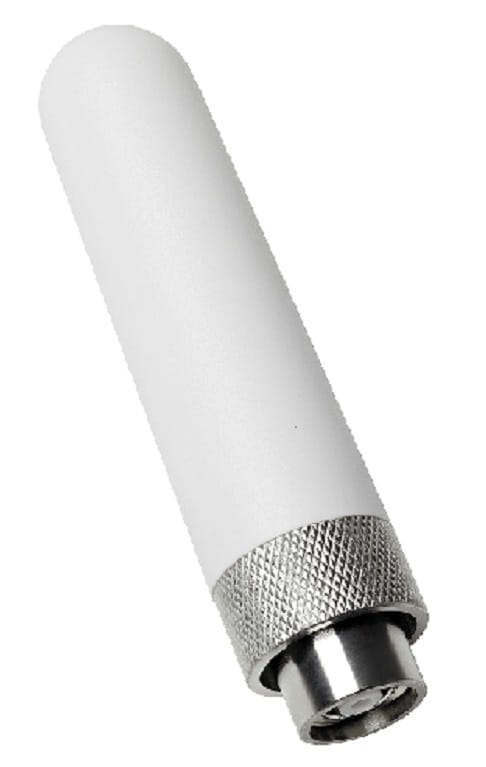

Cisco AIR-ANT2535SDW-R=, 5 dBi, 2.4 - 2.5 / 5.15 - 5.9 GHz, Omni-directional antenna, RP-TNC, Male, Vertical polarization
Cisco Aironet Short Dual-Band Omni Antenna
The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the AP1600, AP2600, AP3600, and AP3700 series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area.
Single white dipole antenna with RP-TNC connector. The antenna provides indoor omnidirectional coverage. It does not articulate as the other dipole antennas. It can be used with the 1600/2600/3600/3700 APs
The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the AP1600, AP2600, AP3600, and AP3700 series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area.
Single white dipole antenna with RP-TNC connector. The antenna provides indoor omnidirectional coverage. It does not articulate as the other dipole antennas. It can be used with the 1600/2600/3600/3700 APs
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 2.5 / 5.15 - 5.9 GHz |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Omni-directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-TNC |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male |
| Polarization | Vertical polarization |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 84 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 3.18 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 50 g |
| Packaging content | |
| Quantity The number of products there are. | 1 |
| SKU | 468026 |
| MPN | AIR-ANT2535SDW-R= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Hardware Warranty |
| Warranty Contact | https://www.cisco.com/ |
