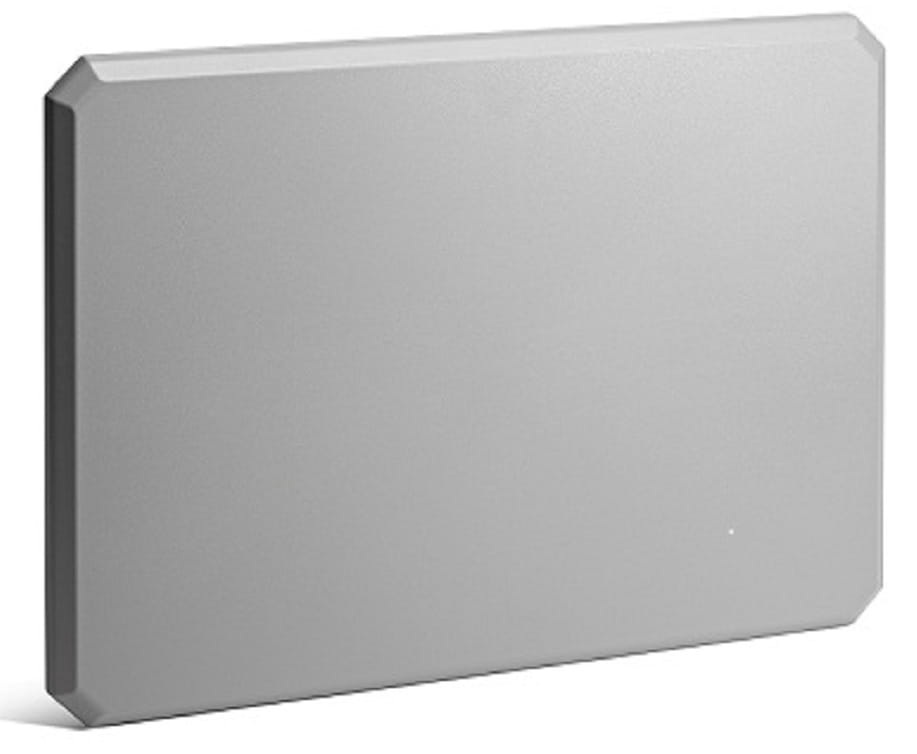

Cisco AIR-ANT2513P4M-N=, 13 dBi, 2.4 - 2.5 / 5.15 - 5.9 GHz, 50
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna
This document describes the AIR-ANT2513P4M-N antenna and provides electrical specifications and mounting instructions. The antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands. It ships with an articulating mount for use on flat surfaces and masts and is adjustable in both the ho
rizontal and vertical planes. The radome is paintable using commonly available non-conductive spray paints, such as Krylon or Rust-Oleum. The antenna is designed for use in indoor and outdoor environments with Cisco Aironet 3702P Access Points.
This document describes the AIR-ANT2513P4M-N antenna and provides electrical specifications and mounting instructions. The antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands. It ships with an articulating mount for use on flat surfaces and masts and is adjustable in both the ho
rizontal and vertical planes. The radome is paintable using commonly available non-conductive spray paints, such as Krylon or Rust-Oleum. The antenna is designed for use in indoor and outdoor environments with Cisco Aironet 3702P Access Points.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 2.5 / 5.15 - 5.9 GHz |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 13 dBi |
| Features | |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | N-type |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Female |
| Polarization | Dual polarization |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 507 mm |
| Height The measurement of the product from head to foot or from base to top. | 21.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.3 kg |
| SKU | 468020 |
| MPN | AIR-ANT2513P4M-N= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
