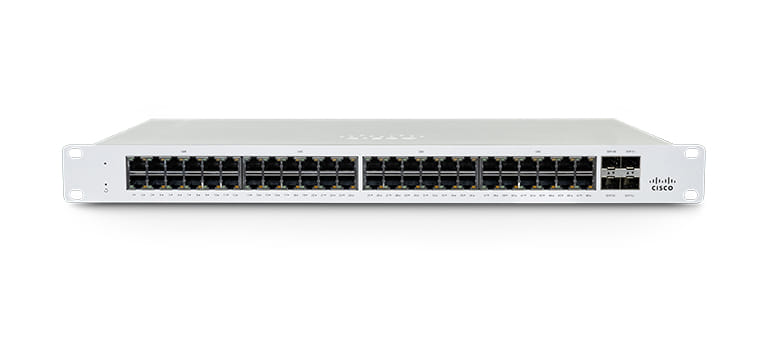

Cisco Meraki MS130-48P Cloud Managed 48GE Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2
Quality of Service (QoS) support

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	48
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Number of management ports	1 pc(s)

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1x, IEEE 802.3bt
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Link aggregation
Spanning tree protocol
Virtual LAN features	Voice VLAN

Data transmission
Switching capacity The data transfer capacity of the switch per second.	104 Gbit/s

Security
DHCP features	DHCP snooping
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SNMP
Authentication	MAC-based authentication
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	RADIUS

Multicast features
Multicast support
Multicast features	Multicast traffic suppression

Protocols
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Form factor The shape or design of the product.	1U
Product colour The colour e.g. red, blue, green, black, white.	White
LED indicators

Performance
Firmware upgradeable
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	309196 h

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
Input current	12 A
Power consumption (max) The maximum amount of power used by the device.	803 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	740 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	440 mm
Depth The distance from the front to the back of something.	250 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	3.69 kg
