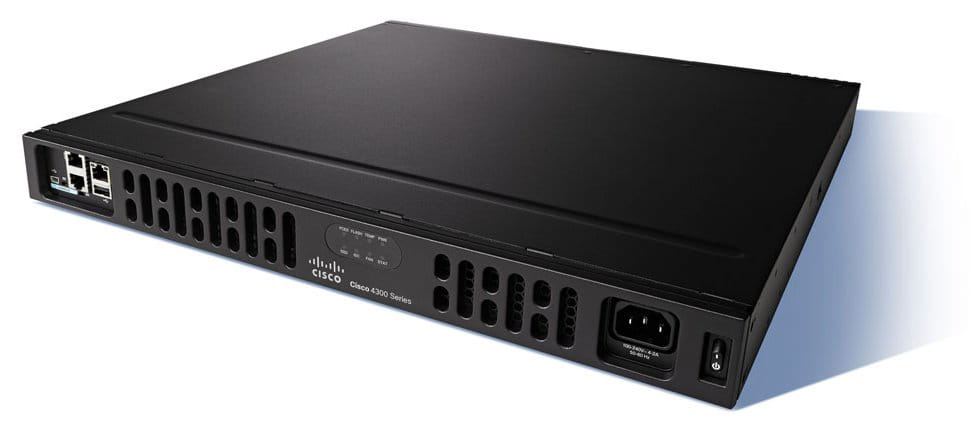

Cisco ISR 4331 Integrated Services Router Bundle With UC & Sec License

WAN connection
Ethernet WAN

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q,IEEE 802.1ag,IEEE 802.3,IEEE 802.3ah
Ethernet interface type	Gigabit Ethernet
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s

Management features
Web-based management Using a website/web application to manage something.
Quality of Service (QoS) support
Reset button

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB ports quantity	2
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	2.0
RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.	2
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Protocols
Routing protocols	BGP,EIGRP,IS-IS,OSPF

Security
Firewall
Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.	Zone based firewall (ZBFW)

Features
Flash memory	4096 MB
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	4096 MB
Maximum memory card size The maximum size of memory card that can be used with this device.	16 GB
Safety List of regulatory safety standards for all countries in which this product has been certified.	UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Rack capacity The spase that device fill in rack.	1U
LED indicators
On/off switch The button which is pressed to switch the device on or off.

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	Not supported

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	42 W
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	250 W
Power source type What the power source is.	AC, DC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	3 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3050 m
Non-operating altitude	0 - 4750 m

Weight & dimensions
Width The measurement or extent of something from side to side.	438.1 mm
Depth The distance from the front to the back of something.	438.1 mm
Height The measurement of the product from head to foot or from base to top.	44.5 mm

Packaging data
Package width The distance from one side of the packaging to the other.	577.9 mm
Package depth The distance from the front to the back of the packaging.	571.5 mm
Package height The distance from the top to the bottom of the packaging.	181 mm
