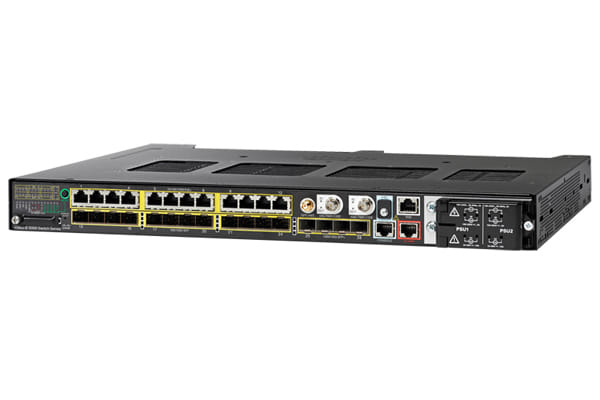

Cisco IE-5000 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over (PoE) 1U Black
Item No:
504680
MPN:
IE-5000-16S12P=
$14,576.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Cisco IE-5000, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
The Cisco
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L3 |
| Quality of Service (QoS) support |
 |
| ARP inspection |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 12 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 12 |
| SFP module slots quantity | 16 |
| Console port | RJ-45 |
| Compatible memory cards Types of memory cards which can be used with this product. | SD |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-TX |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Spanning tree protocol |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN,Port-based VLAN |
| Number of VLANs | 1005 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 56 Gbit/s |
| Forwarding rate | 41.67 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Number of queues | 4 |
| Static route |
|
| Security | |
| DHCP features | DHCP server,DHCP snooping,DHCP relay |
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SNMPv3,SSH |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| SSH/SSL support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Safety List of regulatory safety standards for all countries in which this product has been certified. | UL/CSA 60950-1, EN 60950-1 |
| Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. | FCC 47 CFR Part 15 Class A, EN 55022A Class A, VCCI Class A |
| Certification | CE, RoHS, TAA |
| Performance | |
| Flash memory | 256 MB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 390190 h |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 90 W |
| Surge protection |
|
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 12 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4206 m |
| Non-operating altitude | 0 - 4572 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 445 mm |
| Depth The distance from the front to the back of something. | 356 mm |
| Height The measurement of the product from head to foot or from base to top. | 44.5 mm |
| SKU | 504680 |
| MPN | IE-5000-16S12P= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
