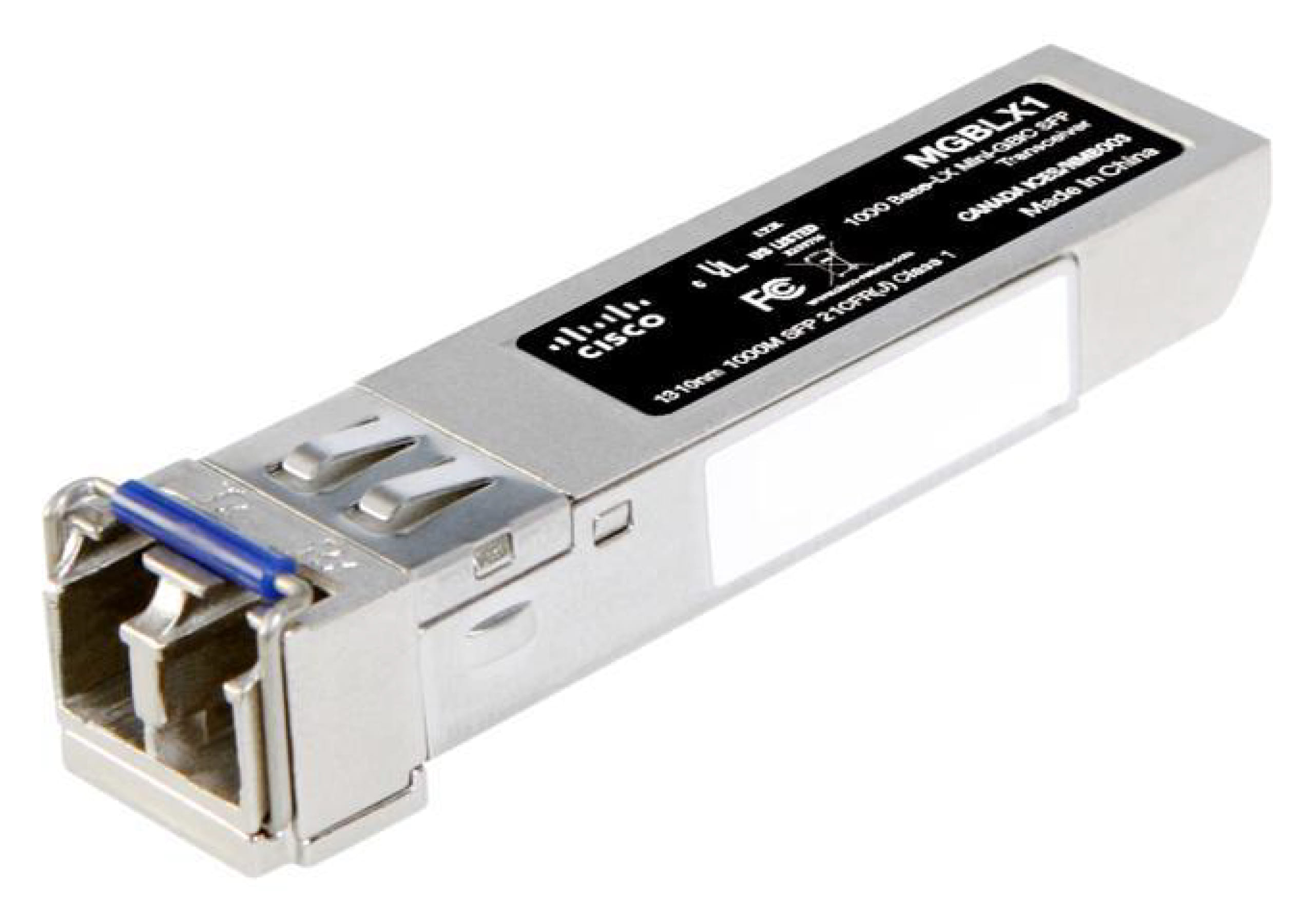

Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1), 1000 Mbit/s, 1000Base-LX, 10000 m, 1310 nm, Wired, 1 W
The Cisco MGBLX1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.
The MGBLX1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 10 kilometers.
The MGBLX1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 10 kilometers.
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 1000Base-LX |
| Performance | |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 10000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1310 nm |
| Features | |
| Hot-swap |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 55.7 mm |
| Depth The distance from the front to the back of something. | 13.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 8.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 20 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 81.3 mm |
| Package depth The distance from the front to the back of the packaging. | 127 mm |
| Package height The distance from the top to the bottom of the packaging. | 25.4 mm |
| Package weight Weight of the packaged product. | 50 g |
| Certificates | |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2 |
| Certification | FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B. |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Transmit power range | -9.5 - -3 dBmW |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 13.4 x 55.7 x 8.5 mm |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SFP |
| Connector(s) | LC-LC |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Fiber type | SMF |
| SKU | 817713 |
| MPN | MGBLX1 |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
