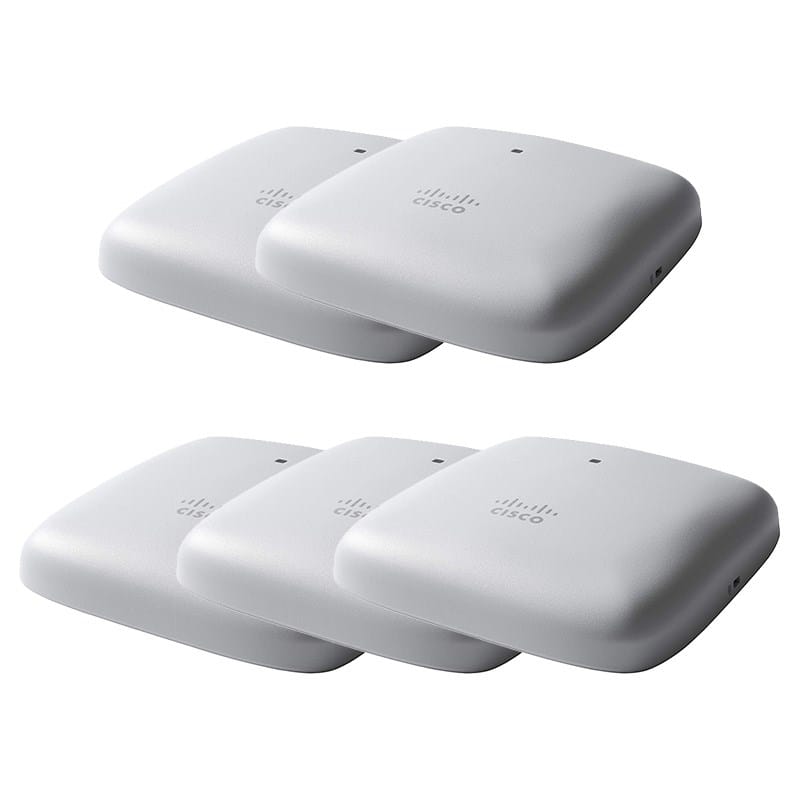

Includes: 5x CBW240AC APs - Max Clients: 200 (per Wi-Fi Radio), 400 (Total), 1000 (In a System) - Max Access Points: 50 (Recommended up to 25) - Max Mesh Extenders: 25 per Access Point, Up to 8 Hops - Data Rate: 600Mbps (2.40Ghz), 1733Mbps (5Ghz) - I/O: 2x Gigabit Ethernet (Autosensing, PoE) - 802.11ac Wave 2 with MU-MIMO 4x4 Technology - Form Factor: Ceiling Mountable
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1733 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Number of users The number of people that use or can use this product. | 400 user(s) |
| MIMO |
|
| MIMO type | Multi User MIMO |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, WPA2, WPA3 |
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators |
|
| Performance | |
| Flash memory | 256 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 178 mm |
| Depth The distance from the front to the back of something. | 178 mm |
| Height The measurement of the product from head to foot or from base to top. | 38 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 430 g |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 458549 |
| MPN | 5-CBW240AC-Z |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Contact | https://www.cisco.com/ |
