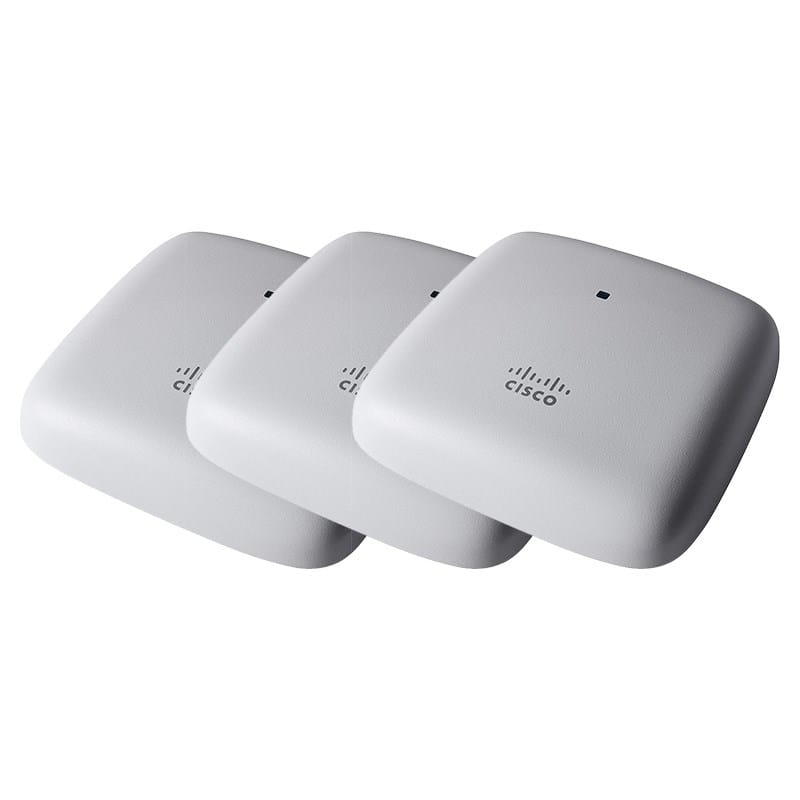

Includes: 3x CBW140AC APs - Max Clients: 200 (per Wi-Fi Radio), 400 (Total), 1000 (In a System) - Max Access Points: 50 (Recommended up to 25) - Max Mesh Extenders: 25 per Access Point, Up to 8 Hops - Data Rate: 300Mbps (2.40Ghz), 867Mbps (5Ghz) - I/O: 1x Gigabit Ethernet (Autosensing, PoE) - 802.11ac Wave 2 with 2x2 MU-MIMO Technology - Form Factor: Ceiling Mountable
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.412 - 2.462; 5.180 - 5.320; 5.500 - 5.700 (excludes 5.600 to 5.640 GHz); 5.745 -5.825 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.11r,IEEE 802.1x,IEEE 802.3af |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Number of users The number of people that use or can use this product. | 400 user(s) |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 32 channels |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Dynamic Frequency Selection (DFS) |
|
| Transmitting power | 20 dBmW |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS,AES,EAP-FAST,EAP-GTC,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,WPA2,WPA3 |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (max) The maximum amount of power used by the device. | 8.3 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Certification | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B) FCC Part 15.107 / 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 / -17 (Europe) EN 50385 FCC OET-65C RSS-102 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna features | Integrated antenna |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 4 dBi |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 710 MHz |
| Flash memory | 256 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 3000 - 4500 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150.8 mm |
| Depth The distance from the front to the back of something. | 150.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 33 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 400 g |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 3 pc(s) |
| SKU | 458315 |
| MPN | 3-CBW140AC-Z |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Warranty Contact | https://www.cisco.com/ |
