Cisco Catalyst Network Switch Managed Layer 2 Gigabit Ethernet (10/100/1000) Black 1U
Item No:
487814
MPN:
WS-C2960X-48TS-L
$8,251.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

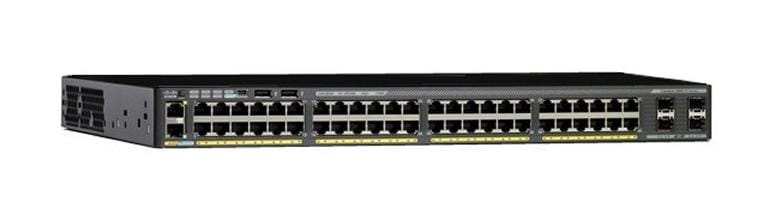

Cisco Catalyst WS-C2960X-48TS-L, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
The most sold switch worldwide, also known as 'the greenest switch ever'. Manage up to eight switches in a stack as one entity.
The Cisco Series 2960-X Switch is the most sold switch worldwide and ideal for medium-sized to enterprise network environments. It's the greenest switch ever. You're able to fit eight switches in one stack, which you can manage as one entity. Your network can be easily modified and the implementation of new applications is supported, so you're able to meet new demands.
Specifications
Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches.
Scalable and resilient
The Cisco 2960-X Series Switch makes sure you can respond to new developments quickly. Because of true stacking capabilities, you can manage switches as one entity. It's possible to stack up to eight switches with 80 Gbps bandwidth, if you add the optional Cisco FlexStack+ module. Use Power over Ethernet and Power over Ethernet+ support up to 740 Watt, without adding extra power sources.
Smart management with software-defined networking (SDN)
The switch is built for network programmability, which makes it ready for software-defined networking (SDN). With network programmability and the controller, you can set up your network the way you want it, without hardware limitations. Use Cisco's OnePK functionalities for developing and automizing your network.
In control with AVC
With application visibility and control (AVC) you realize classification, monitoring and traffic control on application level. NetFlow Lite prioritizes business applications.
Automated configuration
Benefit from automated configuration based on the type of device. This technology, Auto Smart Ports, enables fast deployment.
Network security
The Cisco 2960-X Series Switch is highly secure. Use Cisco Trustsec to enable scalable and dynamic role-based access control. This way, you keep unauthorized users off the network.
Green switch
The Cisco 2960-X Series Switch is the greenest switch ever. When you don't use the network, Cisco Energy Management (CEM) saves energy. With Energy Efficient Ethernet, you save energy on all switch ports which results in cost reduction.
Warranty
The enhanced limited lifetime warranty provides the same terms as Cisco's standard limited lifetime warranty, but adds next business day delivery of
replacement hardware, where available, and 90 days of 8X5 Cisco Technical Assistance Center (TAC) support."
The Cisco Series 2960-X Switch is the most sold switch worldwide and ideal for medium-sized to enterprise network environments. It's the greenest switch ever. You're able to fit eight switches in one stack, which you can manage as one entity. Your network can be easily modified and the implementation of new applications is supported, so you're able to meet new demands.
Specifications
Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches.
Scalable and resilient
The Cisco 2960-X Series Switch makes sure you can respond to new developments quickly. Because of true stacking capabilities, you can manage switches as one entity. It's possible to stack up to eight switches with 80 Gbps bandwidth, if you add the optional Cisco FlexStack+ module. Use Power over Ethernet and Power over Ethernet+ support up to 740 Watt, without adding extra power sources.
Smart management with software-defined networking (SDN)
The switch is built for network programmability, which makes it ready for software-defined networking (SDN). With network programmability and the controller, you can set up your network the way you want it, without hardware limitations. Use Cisco's OnePK functionalities for developing and automizing your network.
In control with AVC
With application visibility and control (AVC) you realize classification, monitoring and traffic control on application level. NetFlow Lite prioritizes business applications.
Automated configuration
Benefit from automated configuration based on the type of device. This technology, Auto Smart Ports, enables fast deployment.
Network security
The Cisco 2960-X Series Switch is highly secure. Use Cisco Trustsec to enable scalable and dynamic role-based access control. This way, you keep unauthorized users off the network.
Green switch
The Cisco 2960-X Series Switch is the greenest switch ever. When you don't use the network, Cisco Energy Management (CEM) saves energy. With Energy Efficient Ethernet, you save energy on all switch ports which results in cost reduction.
Warranty
The enhanced limited lifetime warranty provides the same terms as Cisco's standard limited lifetime warranty, but adds next business day delivery of
replacement hardware, where available, and 90 days of 8X5 Cisco Technical Assistance Center (TAC) support."
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| ARP inspection |
|
| MIB support |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Spanning tree protocol |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Number of VLANs | 1023 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 216 Gbit/s |
| Throughput | 107.1 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Number of queues | 8 |
| Number of static routes | 1000 |
| Jumbo frames support |
|
| Jumbo frames | 9216 |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) |
|
| Access Control List (ACL) rules | 3 |
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS,SNMP,SSH |
| SSH/SSL support |
|
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast features | |
| Multicast support |
|
| Number of multicast groups filtered | 1000 |
| Protocols | |
| Management protocols | SNMPv3 |
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Safety List of regulatory safety standards for all countries in which this product has been certified. | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Certification | 47CFR Part 15 (CFR 47) AS/NZS CISPR22 CISPR22 EN55022 ICES003 VCCI EN61000-3-2 EN61000-3-3 KN22 CNS13438 |
| Performance | |
| Physical stacking (units) | 8 |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor model The model number for the processor in a computer. | AppliedMicro APM8639 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 600 MHz |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | DRAM |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 512 MB |
| Flash memory | 128 MB |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 48 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 442690 h |
| Power | |
| Power supply included There is a power supply with this product. |
|
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 49.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 445 mm |
| Depth The distance from the front to the back of something. | 279 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.2 kg |
| Packaging data | |
| Cables included | AC |
| User guide |
|
| Other features | |
| Power LED |
|
| SKU | 487814 |
| MPN | WS-C2960X-48TS-L |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.cisco.com/ |
