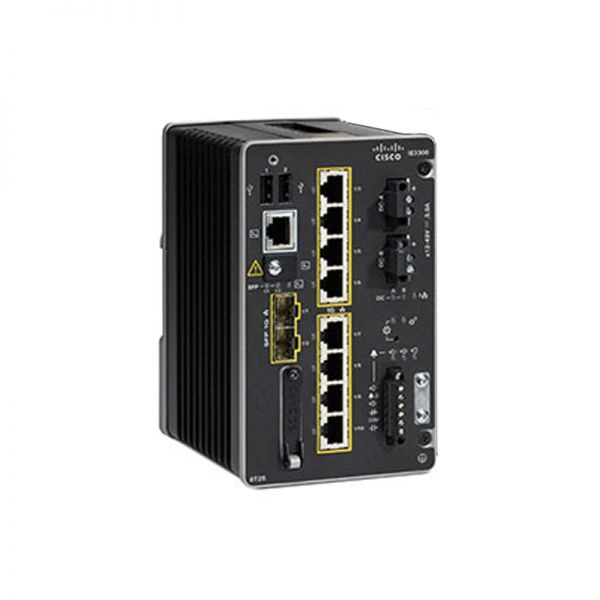

Cisco Catalyst IE3300 Rugged 8 GE Copper, 2 GE SFP Modular Switch Network Advantage

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2
Quality of Service (QoS) support
ARP inspection
System event log
MIB support	802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	2
Console port	RJ-45
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
Compatible memory cards Types of memory cards which can be used with this product.	SD
Power connector	DC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Link aggregation
Broadcast storm control
Spanning tree protocol
Number of VLANs	256

Data transmission
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Number of queues	8
Jumbo frames support
Jumbo frames	8996

Security
DHCP features	DHCP server
Access Control List (ACL)
Access Control List (ACL) ingress	3000
IGMP snooping
IGMP entries	1000
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	802.1x RADIUS, SNMPv3, SSH
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
BPDU filtering/protection
Authentication	Guest VLAN, MAC-based authentication
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	IEEE 802.1x, RADIUS, TACACS+

Multicast features
Multicast support

Protocols
Management protocols	IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
Switching protocols	IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP20
DIN rail mounting
Certification	UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55

Performance
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	2000 MB
Flash memory	1500 MB
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	633420 h

Power
Power supply included There is a power supply with this product.
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
DC input voltage	9.6 - 60 V
Input current	3.8 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	23 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 4572 m

Weight & dimensions
Width The measurement or extent of something from side to side.	91 mm
Depth The distance from the front to the back of something.	135 mm
Height The measurement of the product from head to foot or from base to top.	152 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.7 kg

Logistics data
Harmonized System (HS) code	85176990
