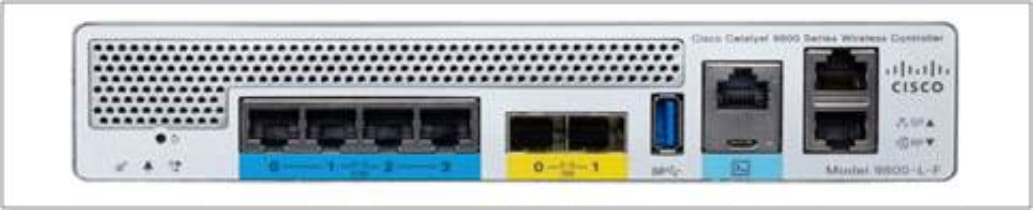

Cisco Catalyst 9800-L (Fiber Uplink) Wireless Controller
Item No:
483848
MPN:
C9800-L-F-K9
$14,922.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Cisco Catalyst 9800-L-F, AES,DES,EAP,HTTPS,IPSec,SSL/TLS,WEP,WPA2, 10,100,1000,10000 Mbit/s, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11h,IEEE..., RJ-45, 215.9 mm, 230.1 mm
The Cisco Catalyst 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises.
Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.
The Cisco Catalyst 9800-L is feature rich and enterprise ready to power your business-critical operations and transform end-user experiences.
Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.
The Cisco Catalyst 9800-L is feature rich and enterprise ready to power your business-critical operations and transform end-user experiences.
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES,DES,EAP,HTTPS,IPSec,SSL/TLS,WEP,WPA2 |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
 |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,10000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11h,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11u,IEEE 802.11w,IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3u |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Quality of Service (QoS) support |
|
| Syslog |
|
| Ports & interfaces | |
| Console port | RJ-45 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 6 |
| Fixed SFP ports quantity | 2 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 215.9 mm |
| Depth The distance from the front to the back of something. | 230.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 40.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.82 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Indication | |
| LED indicators |
|
| Certificates | |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1 |
| Certification | FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Display | |
| Control display unit |
 |
| SKU | 483848 |
| MPN | C9800-L-F-K9 |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
