Cisco C-NIM-2T, Gigabit Ethernet, 10,100,1000 Mbit/s, 1000BASE-TX, Catalyst 8200 Series, 8200L, and all 8300 Series platforms., 0 - 40 DegC, -40 - 70 DegC

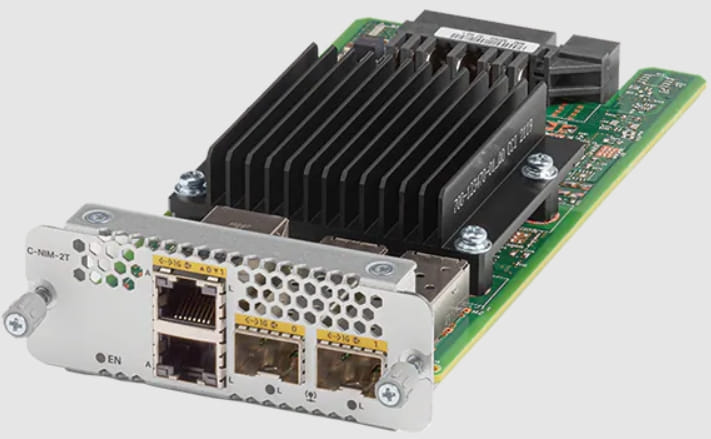

The C-NIM-2T is a dual combo port module with two RJ-45 copper line ports and two SFP fiber ports. The ports on this NIM are configured in two port groups with one RJ45 port and one SFP port in each group. One port from each group can be configured for simultaneous use, providing flexibility in the selection of media for WAN connectivity. The RJ-45 ports support 100BASE-TX and 1000BASE-T copper connections. The SFP ports support 100BASE-FX and 1000BASE-X fiber connections. The module supports 256-bit WAN MACsec. The C-NIM-2T is supported on the Catalyst 8200 Series, 8200L, and all 8300 Series platforms.
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-TX |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Performance | |
| Compatibility The other products, software and hardware this product can be used with. | Catalyst 8200 Series, 8200L, and all 8300 Series platforms. |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 89 mm |
| Depth The distance from the front to the back of something. | 184 mm |
| Height The measurement of the product from head to foot or from base to top. | 32 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 360 g |
| SKU | 644896 |
| MPN | C-NIM-2T= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cisco.com/ |
