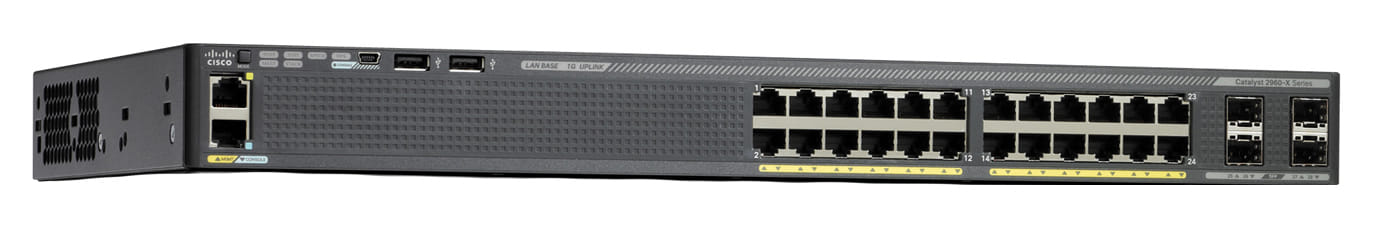

Cisco Catalyst 2960X 24-Ports + 4 SFP UplInk Ports Managed Layer 2 Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2/L3
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
ARP inspection
MIB support

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	24
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Console port	RJ-45
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Spanning tree protocol
Auto-negotiation
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Private VLAN
Number of VLANs	1023

Data transmission
Switching capacity The data transfer capacity of the switch per second.	216 Gbit/s
Throughput	71.4 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Number of queues	8
Number of static routes	1000
Jumbo frames support
Jumbo frames	9216

Security
DHCP features	DHCP server
Access Control List (ACL)
Access Control List (ACL) rules	3
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	802.1x RADIUS,SNMP,SSH
SSH/SSL support
Authentication	MAC-based authentication, Port-based authentication

Multicast features
Multicast support
Number of multicast groups filtered	1000

Protocols
Management protocols	SNMPv3
Switching protocols	UDP, TCP, RADIUS/TACACS+

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Form factor The shape or design of the product.	1U
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators
Safety List of regulatory safety standards for all countries in which this product has been certified.	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Certification	47CFR Part 15 (CFR 47) AS/NZS CISPR22 CISPR22 EN55022 ICES003 VCCI EN61000-3-2 EN61000-3-3 KN22 CNS13438

Performance
Physical stacking (units)	8
Built-in processor Whether or not a processor is built into the device.
Processor model The model number for the processor in a computer.	AppliedMicro APM8639
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	600 MHz
Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM).	DRAM
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	512 MB
Flash memory	128 MB
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	43 dB
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	324280 h

Power
Power supply included There is a power supply with this product.
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
Number of power supply units	1
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	5 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	49 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	12
Total Power over Ethernet (PoE) budget	370 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-5 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-25 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m

Weight & dimensions
Width The measurement or extent of something from side to side.	445 mm
Depth The distance from the front to the back of something.	368 mm
Height The measurement of the product from head to foot or from base to top.	45 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	5.8 kg

Packaging data
Cables included	AC
User guide

Other features
Power LED
