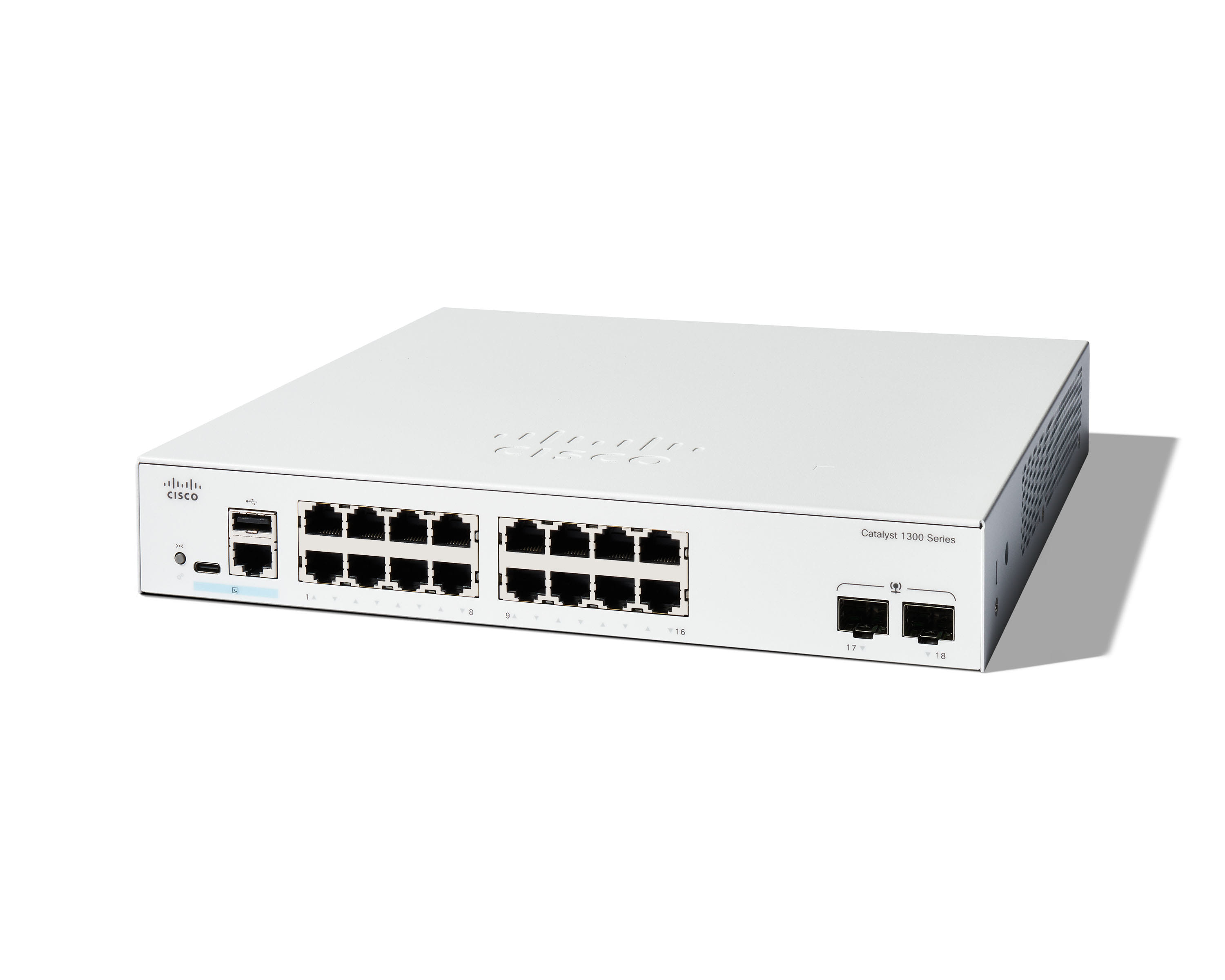

Cisco Catalyst 1300 16-Port GE 2X1G SFP SW

Item No:
807608
MPN:
C1300-16T-2G
$802.86

Cisco Catalyst 1300 16-Port GE 2X1G SFP SW

$802.86
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-3 business days
Store Availability
  • 3-4 business days at Bankstown Store
  • 3-4 business days at Castle Hill Store
Shipping Estimate
Cisco Catalyst 1300-16T-2G Managed Switch, 16 Port GE, 2x1GE SFP, Limited Lifetime Protection (C1300-16T-2G), Managed, L2/L3, Gigabit Ethernet (10/100/1000)
Management features
Switch type What switch device has, managed or unmanaged. Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). L2/L3
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
ARP inspection
Configuring Location Settings (CLI)
MIB support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 16
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device. 2
Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring
Flow control support
Broadcast storm control
Spanning tree protocol
Head-of-line (HOL) blocking
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 1000 Mbit/s
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Data transmission
Static route
Jumbo frames support
Jumbo frames 9000
Security
Access Control List (ACL)
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. HTTPS, SSH, SSL/TLS
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
SSH/SSL support
Multicast features
Multicast support
Design
Product colour The colour e.g. red, blue, green, black, white. White
Housing material What the casing of the product is made of. Metal
Reset button
LED indicators
Country of origin Country where the device is made. Aka Country of manufacture (COM). China
Performance
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. 1400 MHz
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. 1024 MB
Flash memory 512 MB
Power
Power source What is providing power for the product e.g. mains electricity. AC
Power supply included There is a power supply with this product.
Power plug type Type C
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -25 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width The measurement or extent of something from side to side. 271.5 mm
Depth The distance from the front to the back of something. 268.2 mm
Height The measurement of the product from head to foot or from base to top. 43.9 mm
Packaging data
Package width The distance from one side of the packaging to the other. 414 mm
Package depth The distance from the front to the back of the packaging. 399 mm
Package height The distance from the top to the bottom of the packaging. 108 mm
Package weight Weight of the packaged product. 3.74 kg
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
More Information
SKU 807608
MPN C1300-16T-2G
Brand Cisco
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use General
Warranty Period 1 Year Warranty
Warranty Contact https://www.cisco.com/
