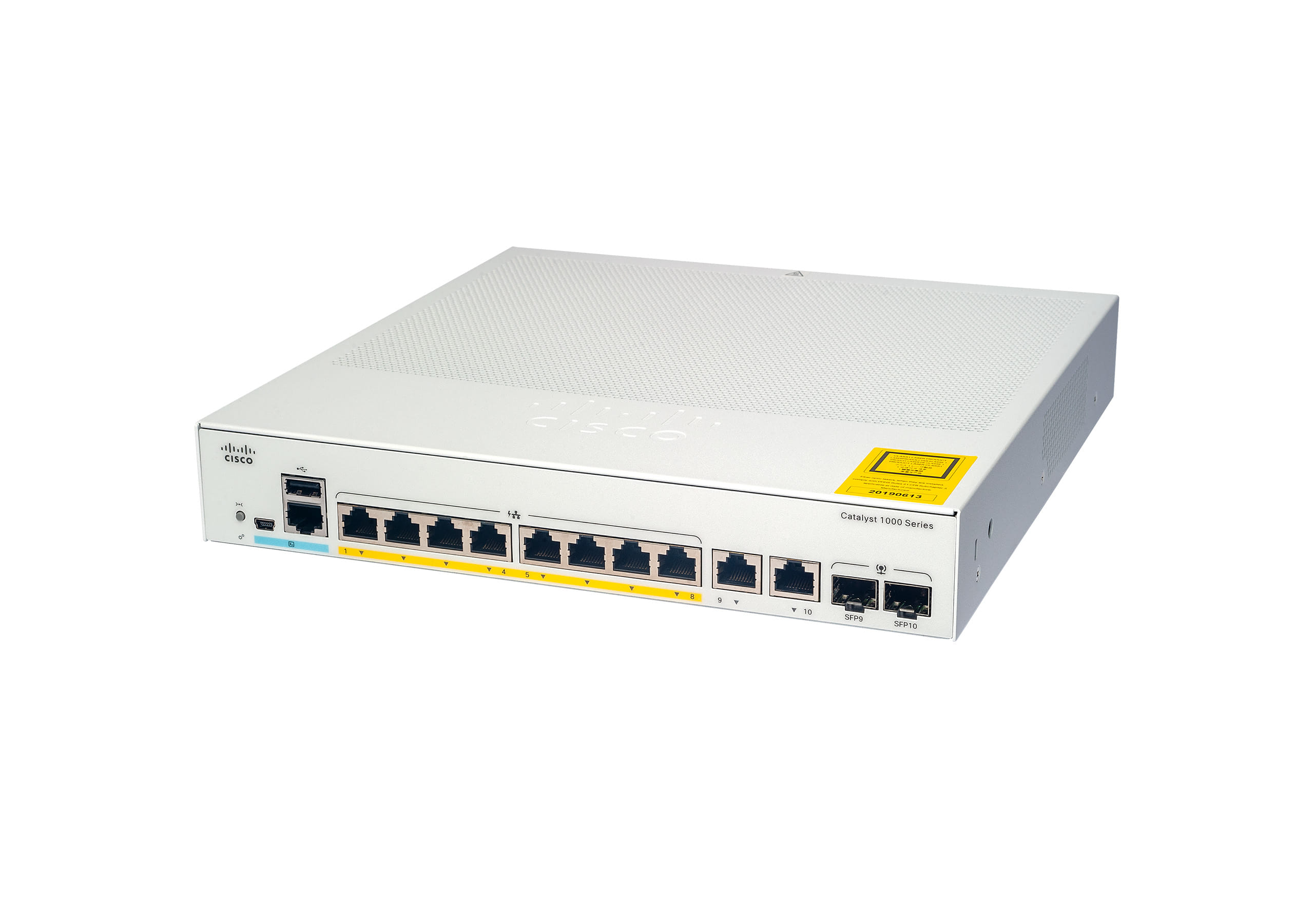

Cisco Catalyst 1000 8-Port GE 2X1G SFP Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Traffic classification
ARP inspection
Configuring Location Settings (CLI)
MIB support

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Link aggregation
Broadcast storm control
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Spanning tree protocol
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Auto-negotiation
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Number of VLANs	256

Data transmission
Switching capacity The data transfer capacity of the switch per second.	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Static route
Number of static routes	16
Jumbo frames support
Jumbo frames	10240

Security
DHCP features	DHCP snooping
Access Control List (ACL)
IGMP snooping
IGMP entries	1024
SSH/SSL support
Loop protection
BPDU filtering/protection
Authentication	Web-based authentication
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	RADIUS

Multicast features
Multicast support
IPv4 multicast entries	1024
IPv6 multicast entries	1024

Protocols
Management protocols	SNMP

Design
Product colour The colour e.g. red, blue, green, black, white.	Grey
LED indicators
Market segment	Business

Performance
Built-in processor Whether or not a processor is built into the device.
Processor model The model number for the processor in a computer.	ARM7
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	800 MHz
Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM).	DRAM
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	512 MB
Flash memory	256 MB
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	2171669 h

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	110 - 220 V
AC input frequency	50 - 60 Hz
Input current	0.13 - 0.22 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	14.2 W
Power consumption (max) The maximum amount of power used by the device.	14.9 W
Power plug type	Type C

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Other features
Packaging content	C1000-8T-2G-L Switch, Accessory Kit, 1 printed document

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-5 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4500 m

Weight & dimensions
Width The measurement or extent of something from side to side.	268.2 mm
Depth The distance from the front to the back of something.	184.9 mm
Height The measurement of the product from head to foot or from base to top.	43.9 mm

Packaging data
Package width The distance from one side of the packaging to the other.	309.6 mm
Package depth The distance from the front to the back of the packaging.	349.2 mm
Package height The distance from the top to the bottom of the packaging.	160.3 mm
Package weight Weight of the packaged product.	2.6 kg

Technical details
Products per shipping (inner) case	1 pc(s)

Logistics data
Quantity per pack	1 pc(s)
Country of origin Country where the device is made. Aka Country of manufacture (COM).	China
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)
