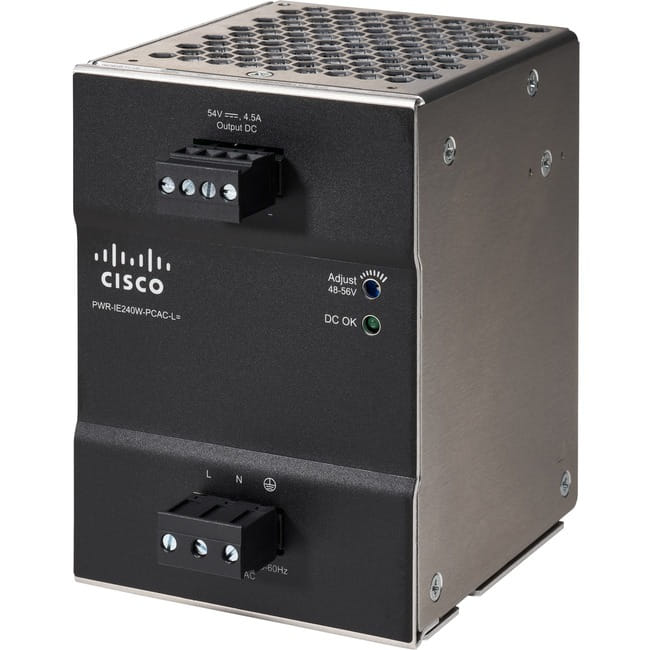

Cisco 240W AC P/S LITE, Power supply, Black, 1058750 h, IP20, SIQ Bauart to EN 60950-1 UL/cUL UL 60950-1 / CSA C22.2 No. 60950-1 UL/cUL UL 62368-1 / CSA C22.2..., 240 W
The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco's industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40DegC and +85DegC
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40DegC and +85DegC
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
| Features | |
| Product type The sub-category of the product. | Power supply |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Internal The product is built in. |
 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1058750 h |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | IP20 |
| Certification | SIQ Bauart to EN 60950-1 UL/cUL UL 60950-1 / CSA C22.2 No. 60950-1 UL/cUL UL 62368-1 / CSA C22.2 No. 62368-1 CB IEC 60950-1 UL 508 /CSA C22.2 No. 107.1-01 (File No. E315355) CSA C22.2 No. 107.1-01 (File No. 181564) EN 61000-3-2 A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, A CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class A |
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 240 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 90 - 264 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 3.5 A |
| Inrush current | 35 A |
| DC output voltage | 54 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 85 mm |
| Depth The distance from the front to the back of something. | 121 mm |
| Height The measurement of the product from head to foot or from base to top. | 124.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 960 g |
| SKU | 563710 |
| MPN | PWR-IE240W-PCAC-L= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
