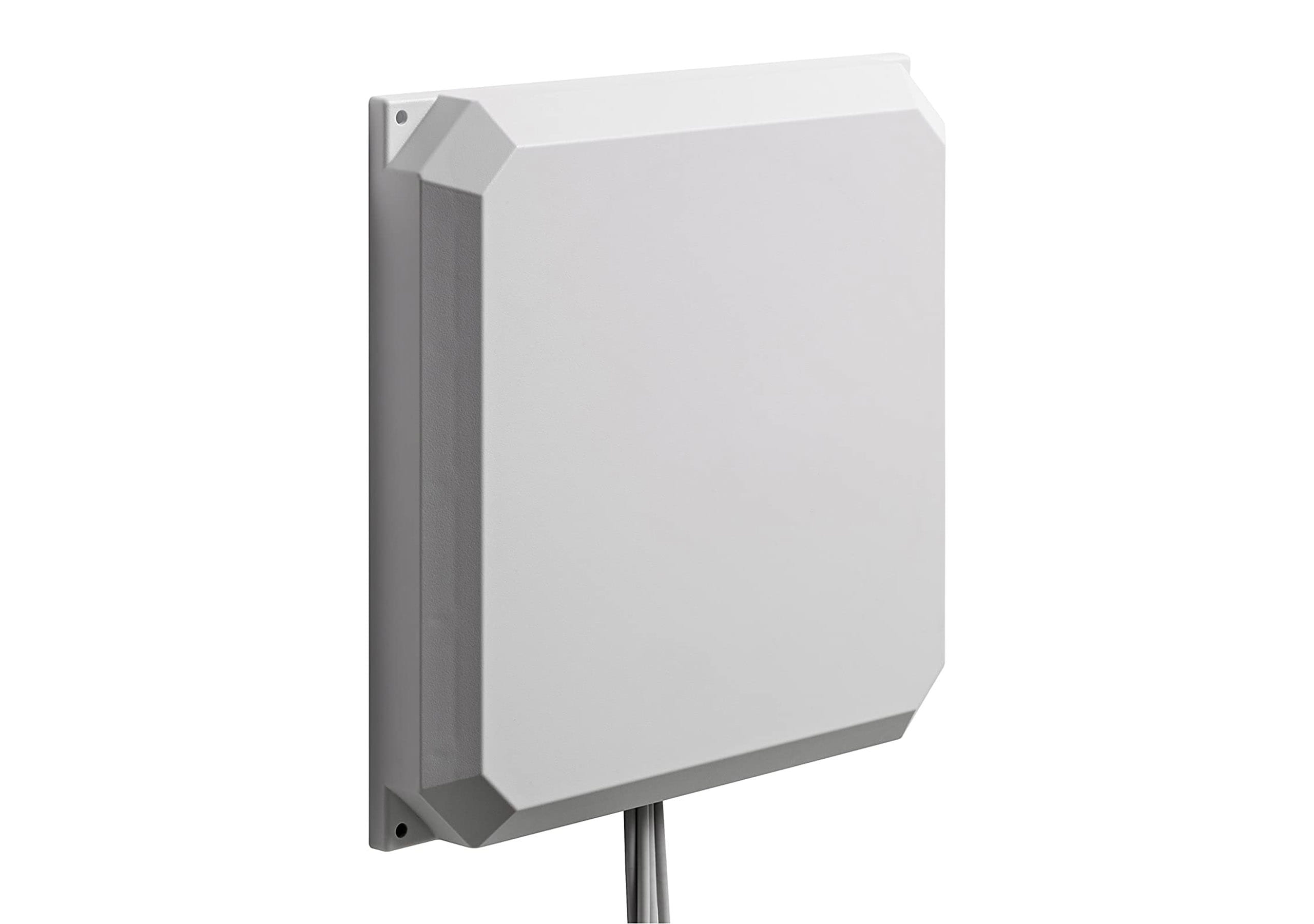

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=), 6 dBi, 2.4/5 GHz, 6 dBi, 6 dBi, 6 dBi, 50 Ohms
The Cisco Aironet AIR-ANT2566D4M-RS= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved performance in mind. It directs the energy it receives from the transmitter to provide more energy in one direction and less in other directions. This FCC-approved patch antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4/5 GHz |
| Gain | 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna gain (5 GHz) | 6 dBi |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 6 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-TNC |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 254 mm |
| Depth The distance from the front to the back of something. | 254 mm |
| Height The measurement of the product from head to foot or from base to top. | 41 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.13 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 260.1 mm |
| Package depth The distance from the front to the back of the packaging. | 260.1 mm |
| Package height The distance from the top to the bottom of the packaging. | 215.9 mm |
| Package weight Weight of the packaged product. | 1.25 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Malaysia |
| SKU | 827309 |
| MPN | AIR-ANT2566D4M-RS= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cisco.com/ |
