Description
Cisco Aironet Antenna for Indoor, Wireless Access Point - 2.4 GHz, 5 GHz - 4 dBi - Ceiling Mount - Omni-directional - RP-TNC Connector
Ceiling-mount omnidirectional antenna. Designed for indoor use, this antenna comes with ceiling mount hardware. It has 4 plenum-rated pigtail cables, 3 ft each, with 4 RP-TNC connectors. Designed for use with access points having dual-band ports, such as the Aironet 1830, 1850, 2800, and 3800 Series and Cisco Catalyst 9115AX, 9120AX, 9130AX Series access point.

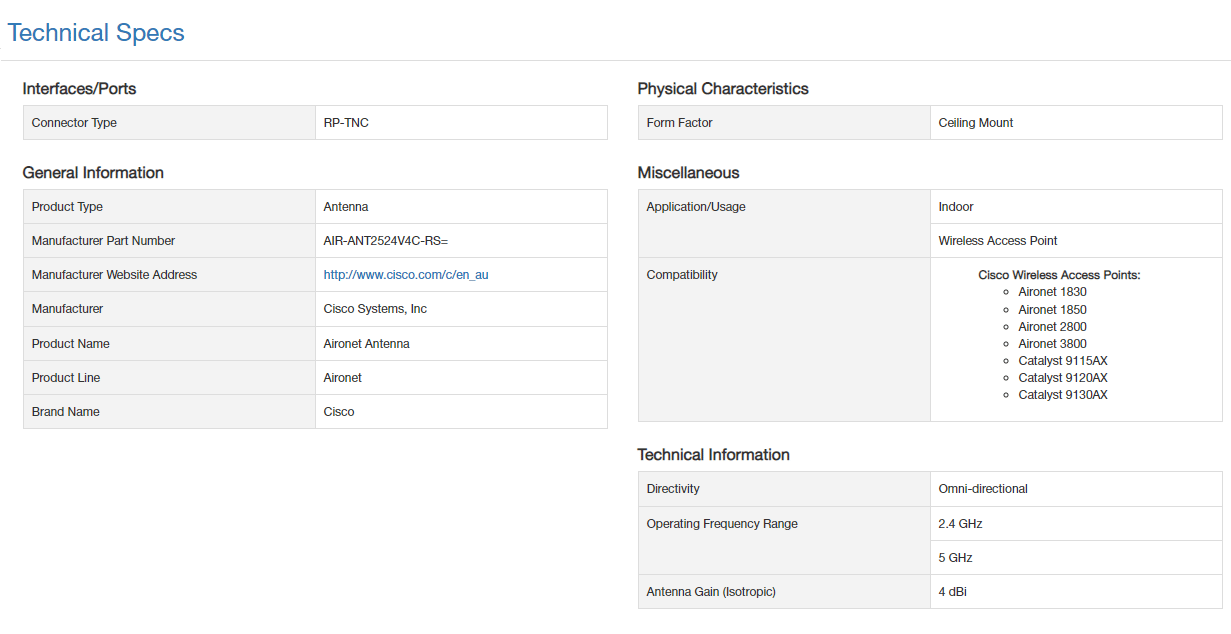

| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4/5 GHz |
| Gain | 4 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Antenna gain (5 GHz) | 4 dBi |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 4 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Omni-directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-TNC |
| Polarization | Linear polarization |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Ceiling |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Malaysia |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 56 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 184 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 184 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 590 g |
| Package width The distance from one side of the packaging to the other. | 194.8 mm |
| Package depth The distance from the front to the back of the packaging. | 215.9 mm |
| Package height The distance from the top to the bottom of the packaging. | 98 mm |
| Package weight Weight of the packaged product. | 770.98 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging content | AIR-ANT2524V4C-RS Antenna, Pointer Card |
| SKU | 572537 |
| MPN | AIR-ANT2524V4C-RS= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Warranty Period | 1 Year Hardware Warranty |
| Warranty Contact | https://www.cisco.com/ |
