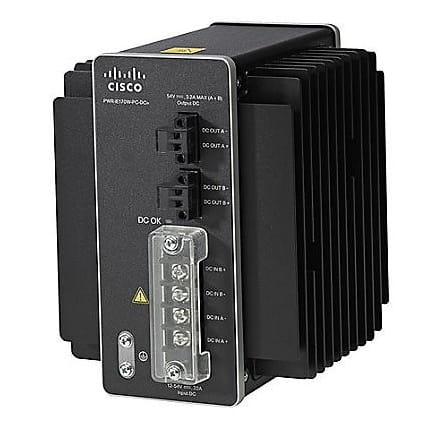

Cisco PWR-IE170W-PC-DC=, Power supply, Black, 2164641 h, IP20, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 UL 508 Class 1, Div 2/Zone 2..., 170 W
The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco's industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40DegC and +85DegC
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40DegC and +85DegC
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
| Features | |
| Product type The sub-category of the product. | Power supply |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Internal The product is built in. |
 |
| DIN rail mounting |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2164641 h |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | IP20 |
| Certification | EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 UL 508 Class 1, Div 2/Zone 2 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN 55032:2015, EN 55024: 2010+A1:2015 EN55032:2015, EN 55024: 2010 FCC 15B IEC 61850-3, IEEE1613 EN 61000-6-4, EN 61000-6-2 |
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 170 W |
| Inrush current | 17.3 A |
| DC voltage range | 10.8 - 60 V |
| DC output voltage | 54 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 114 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 146 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.67 kg |
| SKU | 484208 |
| MPN | PWR-IE170W-PC-DC= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
