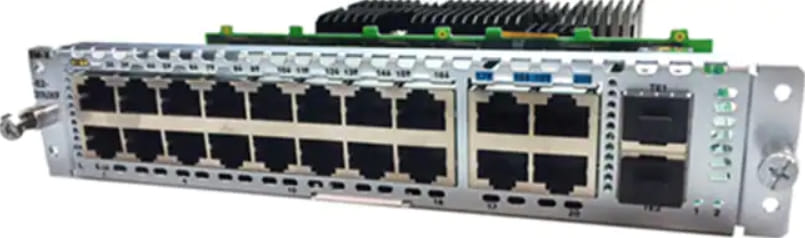

Cisco 16Port 1G 4Port 2.5MGIG 2Port 10GSFP/SFP+ Switch
Item No:
559314
MPN:
SM-X-16G4M2X=
$6,554.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Cisco SM-X-16G4M2X, Gigabit Ethernet, 10,100,1000,2500,10000 Mbit/s, Single Wide, 0 - 40 DegC, -20 - 65 DegC, 5 - 85%
The Cisco SM-X Layer2 EtherSwitch Service Module is crafted to reduce your company's total cost of ownership (TCO) by integrating Gigabit Ethernet (GE) ports within the Cisco ISR4000 Series routers. Extending the power of intent-based networking, this integration allows network administrators to configure a single box for all LAN and WAN needs lowering network complexity and maintenance.
The Cisco SM-X EtherSwitch Modules provides for an enterprise class line of features on the Cisco ISR 4000 series routers, greatly expanding the capabilities of the router by integrating industry-leading Layer 2 switching with feature sets that are built on the lines of those found in the Cisco Catalyst 9200 Series switches.
The Cisco SM-X Layer2 EtherSwitch Service Module takes advantage of the increased capabilities on the Cisco UADP module to provide scale, security and ease of operation. Because the Cisco SM-X Layer2 EtherSwitch Service Modules support the same UADP 1.0 ASIC as the Catalyst 9200 it allows the module to provide a ubiquitous configuration at headquarters and at the branch office to create a consistent experience throughout your network.
Supported models and configurations
Table 1 gives specifications of the Cisco SM-X EtherSwitch Service Modules. All Gigabit Ethernet ports support auto-negotiating 10/100/1000 Mbps. Based on the model up to 8-ports of 2.5G mGig support helps provide uplink connectivity to Access Points and Uplink Expansions, external Advanced 4G LTE and (future) 5G connections. Up to two 10G SFP+ based fiber ports provide for Server connectivity or for high speed aggregated connection to high-speed switches.
The Cisco SM-X EtherSwitch Modules provides for an enterprise class line of features on the Cisco ISR 4000 series routers, greatly expanding the capabilities of the router by integrating industry-leading Layer 2 switching with feature sets that are built on the lines of those found in the Cisco Catalyst 9200 Series switches.
The Cisco SM-X Layer2 EtherSwitch Service Module takes advantage of the increased capabilities on the Cisco UADP module to provide scale, security and ease of operation. Because the Cisco SM-X Layer2 EtherSwitch Service Modules support the same UADP 1.0 ASIC as the Catalyst 9200 it allows the module to provide a ubiquitous configuration at headquarters and at the branch office to create a consistent experience throughout your network.
Supported models and configurations
Table 1 gives specifications of the Cisco SM-X EtherSwitch Service Modules. All Gigabit Ethernet ports support auto-negotiating 10/100/1000 Mbps. Based on the model up to 8-ports of 2.5G mGig support helps provide uplink connectivity to Access Points and Uplink Expansions, external Advanced 4G LTE and (future) 5G connections. Up to two 10G SFP+ based fiber ports provide for Server connectivity or for high speed aggregated connection to high-speed switches.
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500,10000 Mbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 16 |
| Installed SFP modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device. | 2 |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 2 |
| Performance | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Single Wide |
| Management features | |
| Quality of Service (QoS) support |
 |
| Access Control List (ACL) |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438.2 mm |
| Depth The distance from the front to the back of something. | 468.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 89 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.8 kg |
| SKU | 559314 |
| MPN | SM-X-16G4M2X= |
| Brand | Cisco |
| Product Condition | Brand New/Unused |
| Product Use | General |
