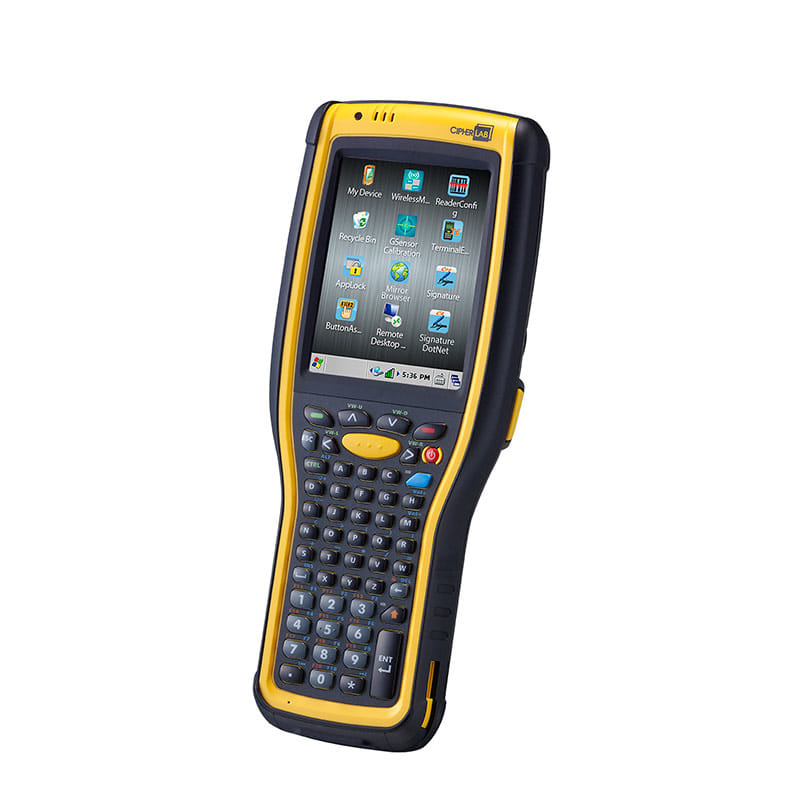

CipherLab 9700, 8.89 cm (3.5"), LED, Resistive, 0.512 GB, 4 GB, MicroSD (TransFlash), SDHC
Deliberately created for the challenging requirements of warehousing, distribution centers and manufacturing industries, the CipherLab 9700 series mobile computer features excellent functionality and ruggedness for applications within four wall environments. This handheld terminal comes with user friendly software and utility support, which also provides new and updated benefits to increase user output.
The 9700 series mobile computer performs with versatility and functionality, while maintaining industrial ruggedness. Fully protected with IP65 standards, 9700 series multiple reader options of laser, near/far 2D imager and standard range 2D imager give users a wide range of data collection options. Its 3 keypad options deliver user friendly usage at all times, In particular, the 53 alphanumeric key serves as an alternative for terminal emulation. Instant data transmission is made possible with CCXv4 certified IEEE 802.11 a/b/g/n and Push to talk features voice transmission which pushes productivity even higher in WLAN environments. The new 9700 mobile computer operates on Windows platform and TI OMAP 1GHz CPU which enables fast and easy application development. Additionally, essential accessories such as pistol grip, and software support makes operation simple with this handheld terminal.
The 9700 series mobile computer performs with versatility and functionality, while maintaining industrial ruggedness. Fully protected with IP65 standards, 9700 series multiple reader options of laser, near/far 2D imager and standard range 2D imager give users a wide range of data collection options. Its 3 keypad options deliver user friendly usage at all times, In particular, the 53 alphanumeric key serves as an alternative for terminal emulation. Instant data transmission is made possible with CCXv4 certified IEEE 802.11 a/b/g/n and Push to talk features voice transmission which pushes productivity even higher in WLAN environments. The new 9700 mobile computer operates on Windows platform and TI OMAP 1GHz CPU which enables fast and easy application development. Additionally, essential accessories such as pistol grip, and software support makes operation simple with this handheld terminal.
| Display | |
| Display The description of display that can includes display type, resolution, size etc. | LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 8.89 cm (3.5") |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Resistive |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 0.512 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR |
| Flash memory | 4 GB |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SDHC |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 32 GB |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Texas Instruments |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1 GHz |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | OMAP 3730 |
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 2.1+EDR |
| Data network Telecommunications network that allows computers to exchange data. | Not supported |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, EAP-TLS, PEAP, TKIP, WEP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK |
| Camera | |
| Built-in camera The product has an integrated camera. |
 |
| Audio | |
| Built-in microphone Microphone that is found inside the product. |
|
| Speakers |
|
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Yellow |
| Barcode reader |
|
| Scanner type Indicates the type of scanner this product is. | 2D |
| Phone function The ability to use the device for phone calls. |
|
| Keyboard layout The type of keys on a keyboard, and their position on the keyboard. This can differ from country to country. | Alphanumeric |
| LED indicators |
|
| Certification | FCC / CE / RoHS / REACH / WEEE / ErP / BSMI /NCC / SRRC / CCC / ANATEL / RCM |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Windows Embedded Handheld 6.5 |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 6.5.3 |
| Power | |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 5400 mAh |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery voltage The voltage (V) of the battery. | 3.7 V |
| Battery life (max) Maximum battery life. Mobile Mark™ (2002) is the standard often used to benchmark battery life time. | 13 h |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 478 g |
| Width The measurement or extent of something from side to side. | 87 mm |
| Depth The distance from the front to the back of something. | 47 mm |
| Height The measurement of the product from head to foot or from base to top. | 214 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| SKU | 744818 |
| MPN | A973M5CFN54UP |
| Brand | CipherLab |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
