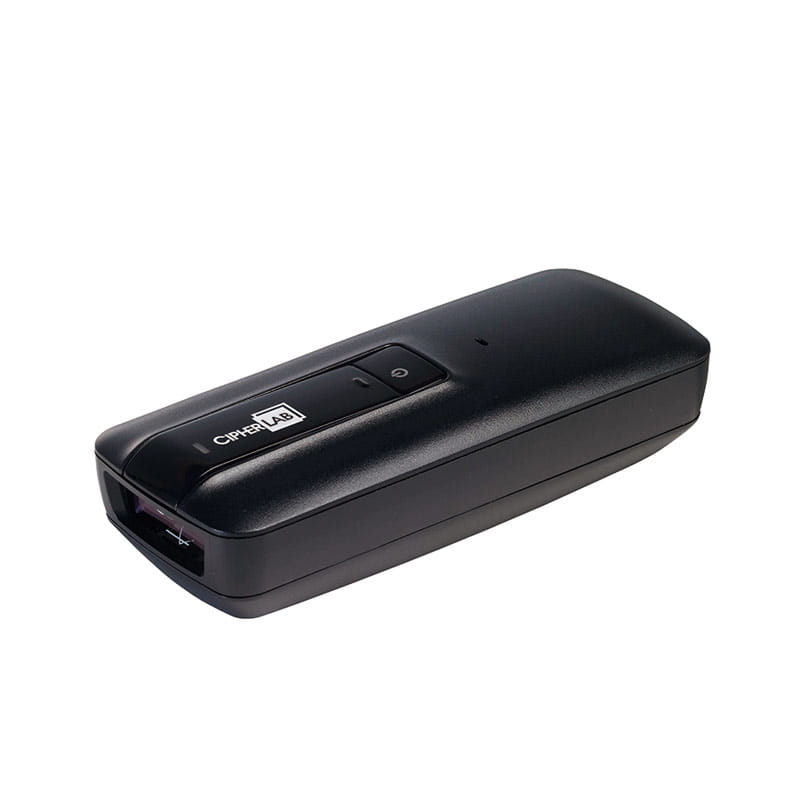

CipherLab 1663, Handheld bar code reader, Linear, Codabar, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, GS1-128 (UCC/EAN-128), Industrial 2 of..., 625 nm, -70 - 70Deg, -70 - 70Deg
Being pocket-sized, the 1600 series is designed to meet the scanning needs in healthcare, field sales and field service. With the reader options of linear imager, laser, and 2D imager, it can effectively capture data from high density barcodes up to 3 mil resolution. Running on AAA batteries, or a rechargeable Li-ion battery, the 1600 series can operate all day long to work across shifts and increase productivity. While it can also function as a memory scanner holding up to 240,000 scans, the Bluetooth connectivity enables instantaneous data transmission to Smartphones and PDAs, keeping your back-end system updated.
Compact in size and easy to clean with alcohol, CipherLab 1600H is ideal for the barcode scanning needs of healthcare applications. It includes the advantage of reading 1D and 2D barcodes, ensuring the right information gets captured. Storing up to 240,000 barcode scans, it can also transfer data swiftly to any Bluetooth device. The 1600H has easy power management translating to long operation hours, lasting past shifts to increase productivity. With the 1600H, the effective results are evident.
Compact in size and easy to clean with alcohol, CipherLab 1600H is ideal for the barcode scanning needs of healthcare applications. It includes the advantage of reading 1D and 2D barcodes, ensuring the right information gets captured. Storing up to 240,000 barcode scans, it can also transfer data swiftly to any Bluetooth device. The 1600H has easy power management translating to long operation hours, lasting past shifts to increase productivity. With the 1600H, the effective results are evident.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Linear |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Codabar, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, GS1-128 (UCC/EAN-128), Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, Telepen, U.P.C. |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 625 nm |
| Tilt reading angle | -70 - 70° |
| Pitch reading angle | -70 - 70° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth, USB |
| Wireless range | 20 m |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 2.0+EDR |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP42 |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 4 MB |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | BSMI, CE, RCM, FCC,IC, NCC |
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Number of batteries supported The number of batteries that can be used with the product. | 1 |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 850 mAh |
| Battery voltage The voltage (V) of the battery. | 3.7 V |
| Battery life The amount of time that the battery will last for. | 40 h |
| Power consumption | 224 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 45 mm |
| Depth The distance from the front to the back of something. | 113 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 105 g |
| Packaging data | |
| Cables included | Micro-USB |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 744776 |
| MPN | A1663CBSNUN01 |
| Brand | CipherLab |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
