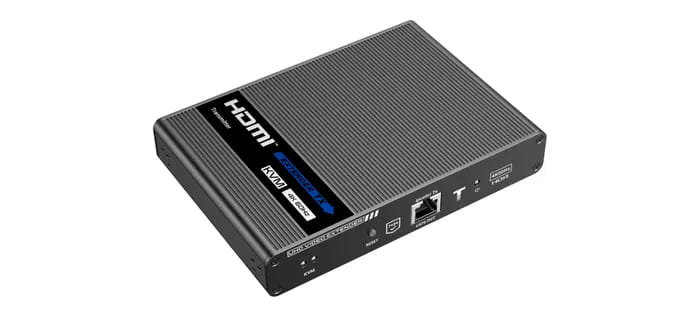

Certech HDMIKVMEXTPRO, 4096 x 2160 pixels, AV transmitter, 70 m, Wired, Black, HDCP
CERTECH UHD 4K HDMI Extender with KVM Support over Single CAT6/6A Cable Supports Mouse & Keyboard extension via USB. Supports IR pass back. Up to 70m 4Kx2K@60Hz UHD
This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 metres at 4K resolution using a CAT6/6A network cable. It is perfect for outdoor advertising, video clips, monitor systems, home entertainment, and conferencing set-ups, etc.
This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 metres at 4K resolution using a CAT6/6A network cable. It is perfect for outdoor advertising, video clips, monitor systems, home entertainment, and conferencing set-ups, etc.
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| High Dynamic Range (HDR) supported |
 |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) |
|
| Supported video modes The video modes that can be displayed by the device. | 480i, 480p, 576i, 576p, 600p, 720p, 768p, 900p, 960p, 1080i, 1080p, 2160p |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | DTS, LPCM |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium |
| Transition Minimized Differential Signaling (TMDS) input | 1.2 V |
| Display Data Channel (DDC) input | 5 V |
| HDCP version | 2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| HDMI version | 2.0 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 4 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 107 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 28.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 260 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| AC adapter included |
|
| SKU | 777245 |
| MPN | HDMIKVMEXTPRO |
| Brand | Certech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.certech.com.au/ |
