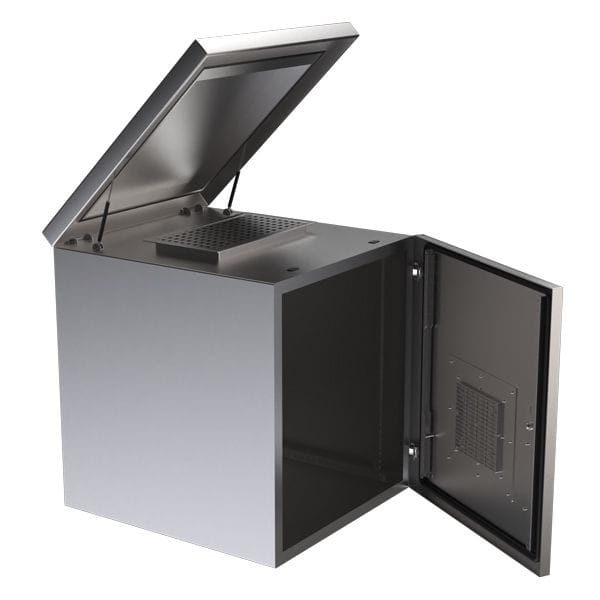

Certech NRODWS12600FK, Wall mounted rack, 12U, 60 kg, Key lock, Grey
CERTECH IP rated racks are designed to protect sensitive network equipment from harsh environments where equipment may be exposed to dust or water. If you need a tough & robust rack, then look no further than CERTECH IP45 & IP65 rated racks, available in wall mounted & free standing options. All racks are manufactured to universal 19 standards, providing the ability of use with universal 19 equipment from vendors worldwide. All racks are constructed from high quality cold rolled steel or SUS316 stainless steel. & are shipped fully assembled for quick deployment. CERTECH racks are covered by a 2 year warranty, subject to use within the static loading specifications and operation within normal environmental conditions.
IP Rating
Free standing models: IP45 rated. Wall mount models: IP45 & IP65 rated.
Fans (IP45 Rated Models)
Smartly designed, fans (with dust filters) are accessible by lifting the pivoting rain hood, allowing the fans to be serviced without having to remove any rack mounted equipment. Comes with a thermostat for controlled air flow.
Cable Entry
Cable entry plates and glands located on the base panel of racks, making for easy cable access.
Rack Mounting Compatibility
All racks are compatible with all EIA 310 compliant 19 3 equipment.
Vertical Mounting Rails
Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.
Ventilation & Dust Filters (IP45 Rated Models)
The cabinet design allows natural wind cooling through filtered vents on the front door and venting under the lip of the rain hood, which has a 25mm vented lip and is angled at 75mm, allowing for water run off. The filters are conveniently located on the front door, allowing for easy access & servicing, without having to remove any rack mounted equipment.
Front Door
Front door has 130 degrees of movement, swinging from left to right, fitted with a water & dust polyurethane door joint strip.
Construction
Fully welded design, made from cold rolled steel or SUS316 stainless steel.
IP Rating
Free standing models: IP45 rated. Wall mount models: IP45 & IP65 rated.
Fans (IP45 Rated Models)
Smartly designed, fans (with dust filters) are accessible by lifting the pivoting rain hood, allowing the fans to be serviced without having to remove any rack mounted equipment. Comes with a thermostat for controlled air flow.
Cable Entry
Cable entry plates and glands located on the base panel of racks, making for easy cable access.
Rack Mounting Compatibility
All racks are compatible with all EIA 310 compliant 19 3 equipment.
Vertical Mounting Rails
Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.
Ventilation & Dust Filters (IP45 Rated Models)
The cabinet design allows natural wind cooling through filtered vents on the front door and venting under the lip of the rain hood, which has a 25mm vented lip and is angled at 75mm, allowing for water run off. The filters are conveniently located on the front door, allowing for easy access & servicing, without having to remove any rack mounted equipment.
Front Door
Front door has 130 degrees of movement, swinging from left to right, fitted with a water & dust polyurethane door joint strip.
Construction
Fully welded design, made from cold rolled steel or SUS316 stainless steel.
| Features | |
| Rack capacity The spase that device fill in rack. | 12U |
| Type Characteristics of the device. | Wall mounted rack |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 60 kg |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Stainless steel |
| Key lock |
 |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP45 |
| Certification | IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 611 mm |
| Depth The distance from the front to the back of something. | 665 mm |
| Height The measurement of the product from head to foot or from base to top. | 685 mm |
| Technical details | |
| Warranty period | 2 year(s) |
| SKU | 734648 |
| MPN | NRODWS12600FK |
| Brand | Certech |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.certech.com.au/ |
| Stock Availability | Available for Shipping |
